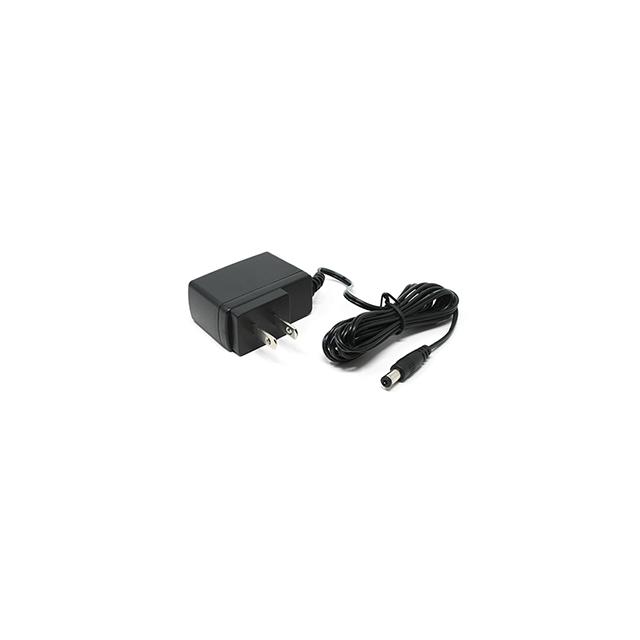

PEAW6NA-10-B1
ActiveTT Electronics/Power Partners Inc.
AC/DC WALL MOUNT ADAPTER 5V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PEAW6NA-10-B1
ActiveTT Electronics/Power Partners Inc.
AC/DC WALL MOUNT ADAPTER 5V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PEAW6NA-10-B1 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, LPS, FCC, CE, cULus, CB |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 1.2 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 6 W |
| Region Utilized | North America |
| Size / Dimension [x] | 2.12 " |
| Size / Dimension [x] | 53.8 mm |
| Size / Dimension [y] | 1.61 " |
| Size / Dimension [y] | 40.9 mm |
| Size / Dimension [z] | 23.9 mm |
| Size / Dimension [z] | 0.94 in |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.79 | |
| 5 | $ 6.24 | |||
| 10 | $ 6.02 | |||
| 25 | $ 5.74 | |||
| 50 | $ 5.54 | |||
| 100 | $ 5.47 | |||
Description
General part information
PEAW6NA-10-B1
5V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
