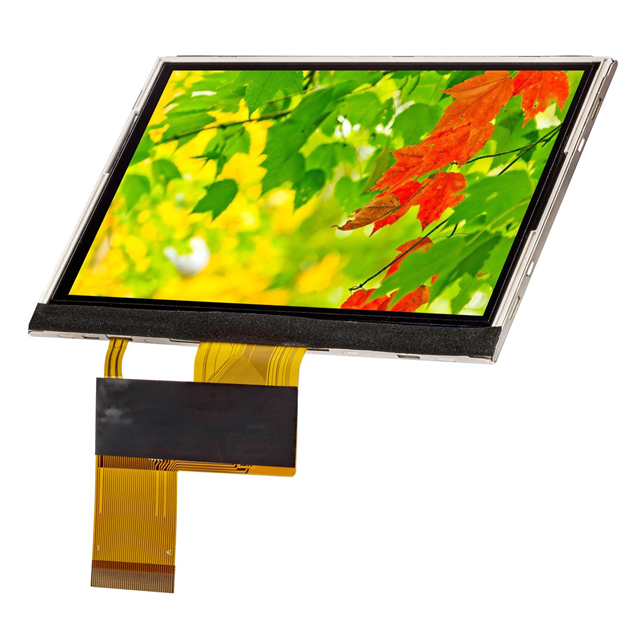

EA R480X-43ALW
ActiveDisplay Visions
4,3" TFT DISPLAY 480X272 DOTS IN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EA R480X-43ALW |
|---|---|
| Controller Type | SC7283, GT911 |
| Diagonal Screen Size | 109.22 mm |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color, IPS (In-Plane Switching) |
| Dot Pitch [x] | 0.2 mm |
| Dot Pitch [y] | 0.2 mm |
| Dot Pixels [x] | 480 |
| Dot Pixels [y] | 272 |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel |
| Interface | 24 Bit |
| Viewing Area [x] | 95.04 mm |
| Viewing Area [y] | 53.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 39.17 | |
| 10 | $ 32.01 | |||
| 100 | $ 27.88 | |||
Description
General part information
EA R480X-43ALW
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 24-Bit (RGB) 4.3" (109.22mm) 480 x 272
