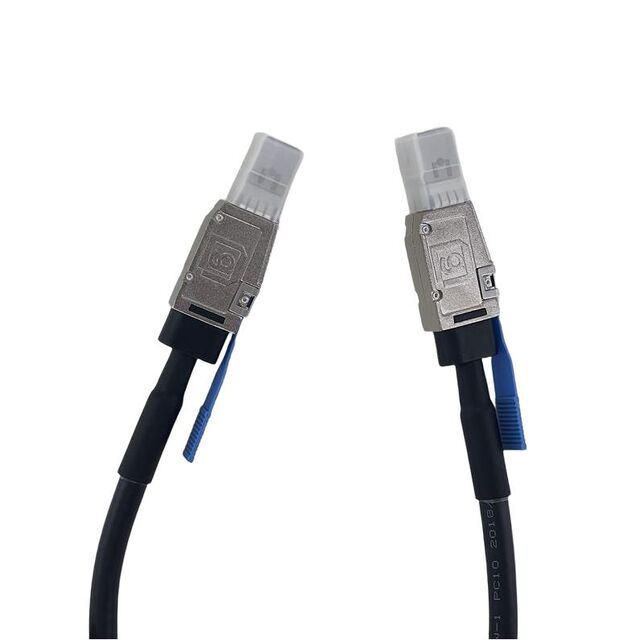

320-10270-03
ActiveAces Connectors
EXT. MINI SAS HD 4X, SAS3, 100 O
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
320-10270-03
ActiveAces Connectors
EXT. MINI SAS HD 4X, SAS3, 100 O
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 320-10270-03 |
|---|---|
| Cable Connectors | miniSAS HD 4x |
| Cable Type | Round, Twin Axial |
| Color | Black |
| Connector Type | Plug to Plug |
| Fastening Type | Push-Pull, Latch Lock |
| Gender | Male to Male |
| Length [x] | 2 m |
| Length [x] | 6.56 ft |
| Number of Positions | 36 |
| Shielding | Shielded |
| Wire Gauge | 32 AWG, 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 42.36 | |
| 10 | $ 32.77 | |||
| 25 | $ 29.72 | |||
| 50 | $ 27.67 | |||
| 100 | $ 25.81 | |||
| 250 | $ 23.62 | |||
Description
General part information
320-10270-03
36 Position miniSAS HD 4x Plug to Plug 6.56' (2.00m) Black Shielded
