604-0695
ActiveEisele Connectors

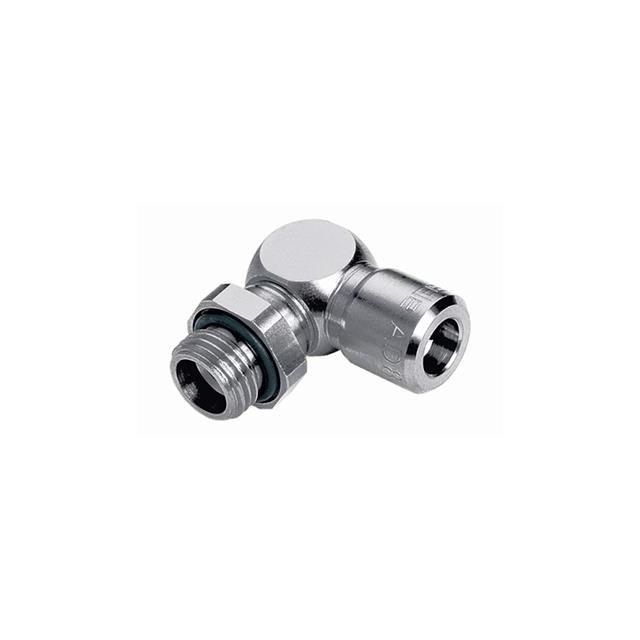

ELBOW SCREW-IN CONN. SWIV.,G3/8,
Deep-Dive with AI
Search across all available documentation for this part.
604-0695
ActiveEisele Connectors
ELBOW SCREW-IN CONN. SWIV.,G3/8,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 604-0695 |
|---|---|
| Color | Silver |
| Connection Method | Push-In to Threaded |
| Features | Orientable |
| For Use With/Related Products | 3/8" OD Tubing |
| Material | Nickel Plated Brass |
| Mounting Type | Free Hanging (In-Line) |
| Operating Pressure [Max] | 16 bar |
| Operating Pressure [Max] | 232 PSI |
| Operating Pressure [Min] | -1 bar |
| Operating Pressure [Min] | -14 PSI |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Thread Size | G3/8 |
| Type | Elbow Fitting |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 24.26 | |
| 100 | $ 23.53 | |||
| 500 | $ 23.05 | |||
| 1000 | $ 21.83 | |||
Description
General part information
604-0695
ELBOW SCREW-IN CONN. SWIV.,G3/8,
Documents
Technical documentation and resources
No documents available
