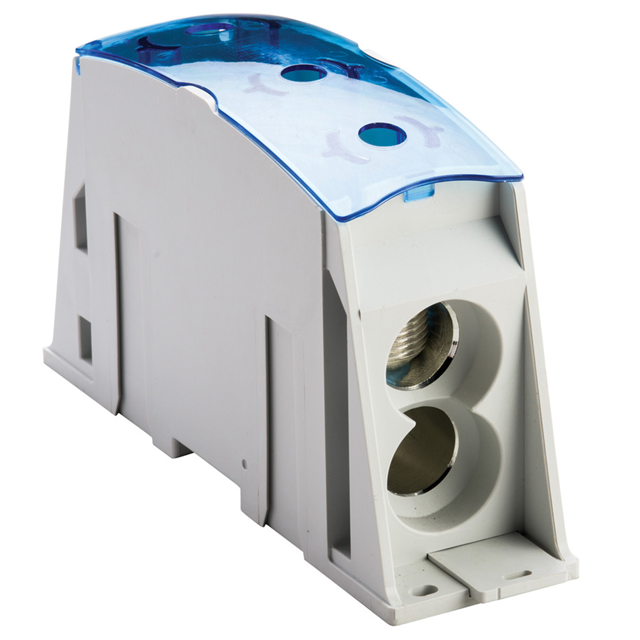

561174
ActivenVent
PLUGGABLE SYSTEM TERMINAL BLOCK ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 561174 |
|---|---|
| Current Rating (Amps) | 545 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 2 |
| Line Side Wire/Stud Size [Max] | 1000 kcmil |
| Line Side Wire/Stud Size [Min] | 400 kcmil |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 2 |
| Load Side Wire/Stud Size | #2AL |
| Load Side Wire/Stud Size | 600 MCM (kcmil) |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
561174
1 Pole Power Distribution Block 545 A 1000 V
