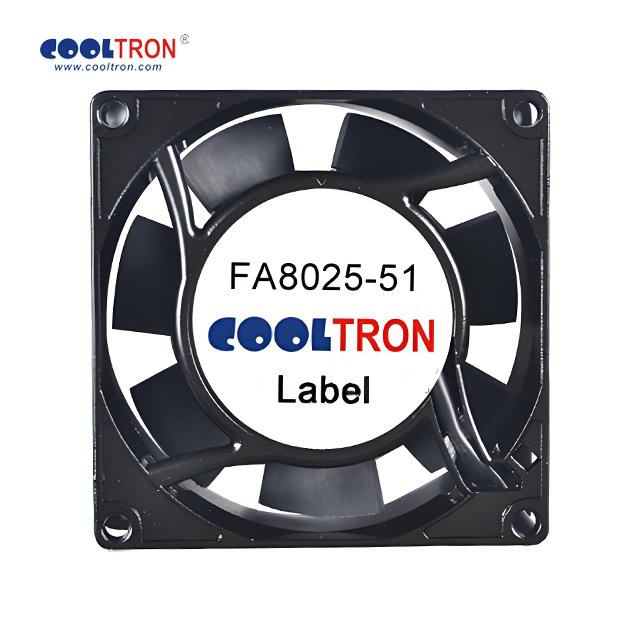

FA8025B11T7-51
ActiveCooltron Industrial Supply
AC AXIAL FANS 80X80X25MM 115VAC
Deep-Dive with AI
Search across all available documentation for this part.
FA8025B11T7-51
ActiveCooltron Industrial Supply
AC AXIAL FANS 80X80X25MM 115VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FA8025B11T7-51 |
|---|---|
| Air Flow [Max] | 0.616 mł/min |
| Air Flow [Max] | 22 CFM |
| Air Flow [Min] | 18 CFM |
| Air Flow [Min] | 0.504 mł/min |
| Approval Agency | cUL, UL, CE |
| Bearing Type | Ball |
| Current Rating (Amps) [Max] | 0.07 A |
| Current Rating (Amps) [Min] | 0.06 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 25 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 6 W, 5 W |
| RPM [Max] | 2900 RPM |
| RPM [Min] | 2400 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure [Max] | 0.138 in H2O |
| Static Pressure [Max] | 34.3 Pa |
| Static Pressure [Min] | 25.4 Pa |
| Static Pressure [Min] | 0.102 in H2O |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Voltage Range [Max] | 125 VAC |
| Voltage Range [Min] | 100 VAC |
| Weight | 0.498 lb |
| Weight | 225.89 g |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 2 | $ 30.00 | |
| 10 | $ 29.00 | |||
| 20 | $ 28.50 | |||
Description
General part information
FA8025B11T7-51
Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 18.0 ~ 22.0 CFM (0.504 ~ 0.616mł/min) 2 Terminals
