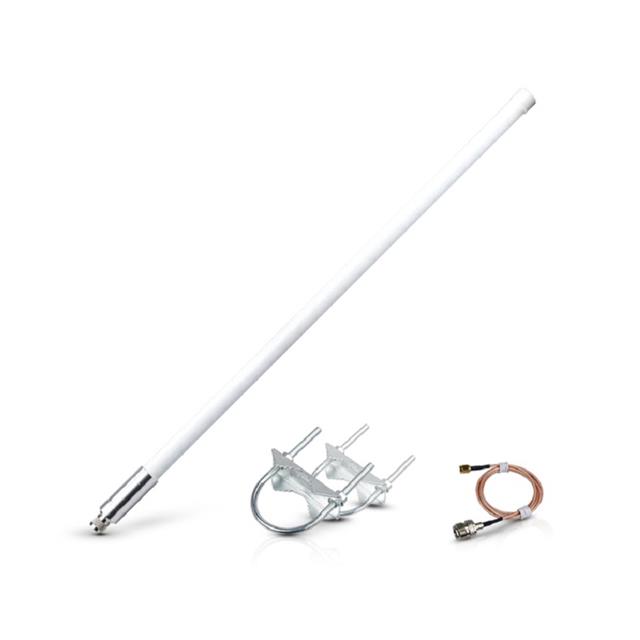

RAK5.8DBI
ActiveRAKwireless
5.8DBI FIBERGLASS ANTENNA FOR HE
Deep-Dive with AI
Search across all available documentation for this part.
RAK5.8DBI
ActiveRAKwireless
5.8DBI FIBERGLASS ANTENNA FOR HE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RAK5.8DBI |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | LoRa |
| Frequency (Center/Band) | 866.5 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 870 MHz |
| Frequency Range [Min] | 863 MHz |
| Gain | 5.8 dB |
| Height (Max) [Max] | 31.496 in |
| Height (Max) [Max] | 800 mm |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | N Type Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RAK5.8DBI
866.5MHz LoRa Whip, Straight RF Antenna 863MHz ~ 870MHz 5.8dBi N Type Male Bracket Mount
Documents
Technical documentation and resources
No documents available
