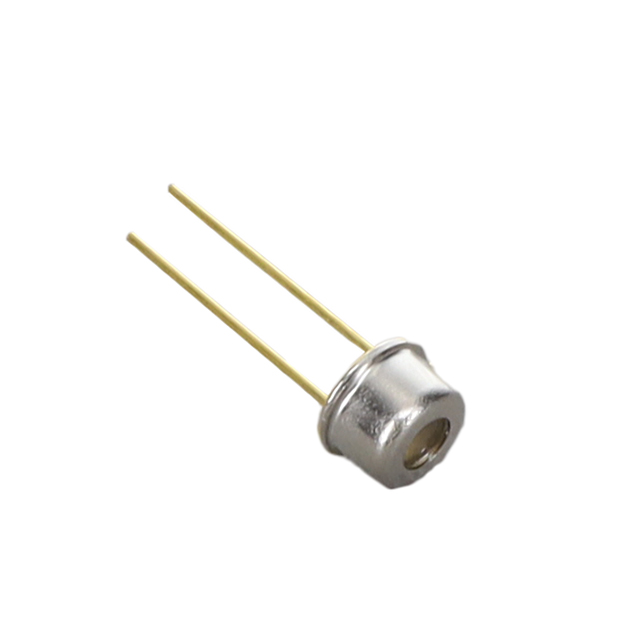

GUVB-T11GD-L
ActiveGenicom Co., Ltd.
SENSOR PHOTODIODE 220-320NM TO46
Deep-Dive with AI
Search across all available documentation for this part.
GUVB-T11GD-L
ActiveGenicom Co., Ltd.
SENSOR PHOTODIODE 220-320NM TO46
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GUVB-T11GD-L |
|---|---|
| Active Area | 1.54 mm² |
| Color - Enhanced | Ultraviolet (UV) |
| Current - Dark (Typ) [Max] | 20 nA |
| Diode Type | Schottky |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | TO-46-2 Metal Can |
| Responsivity @ nm | 0.13 A/W |
| Spectral Range [Max] [x] | 320 nm |
| Spectral Range [Min] [x] | 220 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.33 | |
| 10 | $ 19.44 | |||
| 25 | $ 17.22 | |||
| 100 | $ 16.66 | |||
| 500 | $ 15.55 | |||
Description
General part information
GUVB-T11GD-L
Photodiode TO-46-2 Metal Can
Documents
Technical documentation and resources
No documents available
