TTER09-1204SG
ActiveMentech Technology USA Inc.

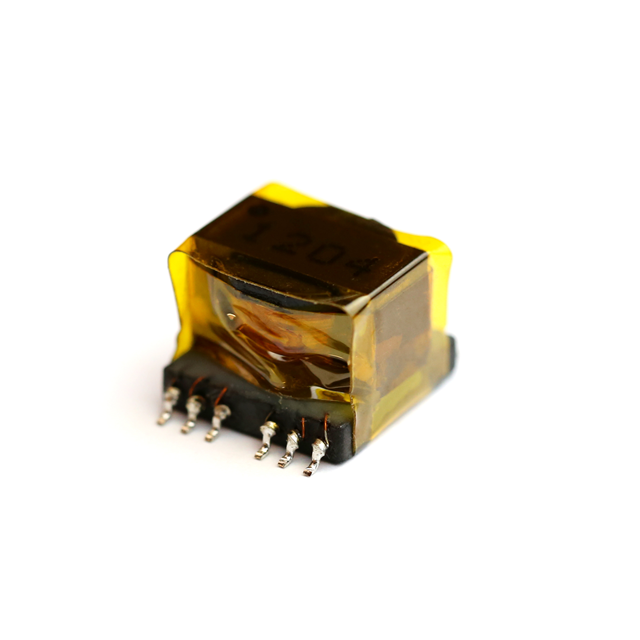

PWR XFMR,17:5:11:3:11:3,20UH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TTER09-1204SG
ActiveMentech Technology USA Inc.
PWR XFMR,17:5:11:3:11:3,20UH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TTER09-1204SG |
|---|---|
| Height - Seated (Max) [Max] [z] | 11 mm |
| Height - Seated (Max) [Max] [z] | 0.433 in |
| Inductance | 20 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.67 in |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [y] | 0.512 in |
| Turns Ratio - Primary:Secondary | 17:5, 11:3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 11.32 | |
| 5 | $ 11.32 | |||
| 10 | $ 9.06 | |||
| 185 | $ 6.00 | |||
| 555 | $ 5.12 | |||
| 1110 | $ 4.53 | |||
| 2220 | $ 3.40 | |||
| 4440 | $ 2.26 | |||
| 8880 | $ 1.70 | |||
Description
General part information
TTER09-1204SG
20µH Pulse Transformer 17:5:11:3:11:3 Surface Mount
