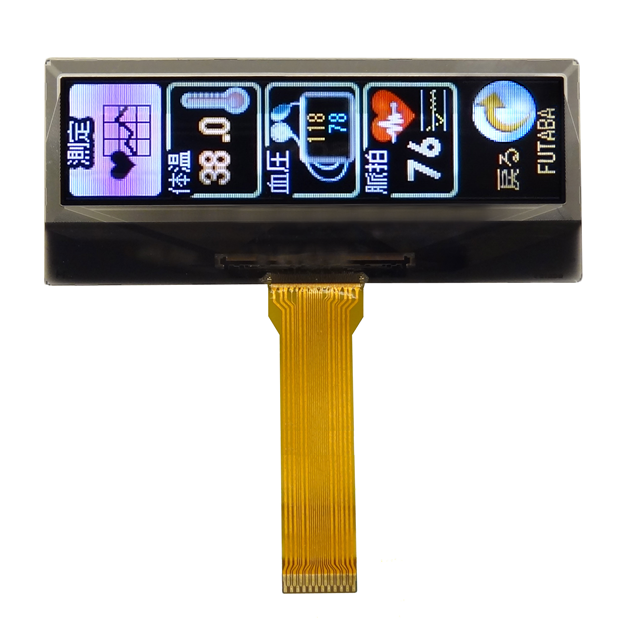

ELF2001AA
ObsoleteFutaba Corporation
256X64 FULL COLOR, 2.0" OLED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELF2001AA
ObsoleteFutaba Corporation
256X64 FULL COLOR, 2.0" OLED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELF2001AA |
|---|---|
| Diagonal Screen Size | 50.8 mm |
| Diagonal Screen Size | 2 in |
| Display Type | OLED - Passive Matrix |
| Dot Pitch [x] | 0.06 mm |
| Dot Pitch [y] | 0.19 mm |
| Dot Pixels [x] | 256 |
| Dot Pixels [y] | 64 |
| Dot Size [x] | 0.043 mm |
| Dot Size [y] | 0.16 mm |
| Graphics Color | Green, Red, Blue |
| Interface | I2C, SPI |
| Viewing Area [x] | 43.1 mm |
| Viewing Area [y] | 11.88 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ELF2001AA
Graphic LCD Display Module Red, Green, Blue (RGB) OLED - Passive Matrix I2C, SPI 2" (50.80mm) 256 x 64
