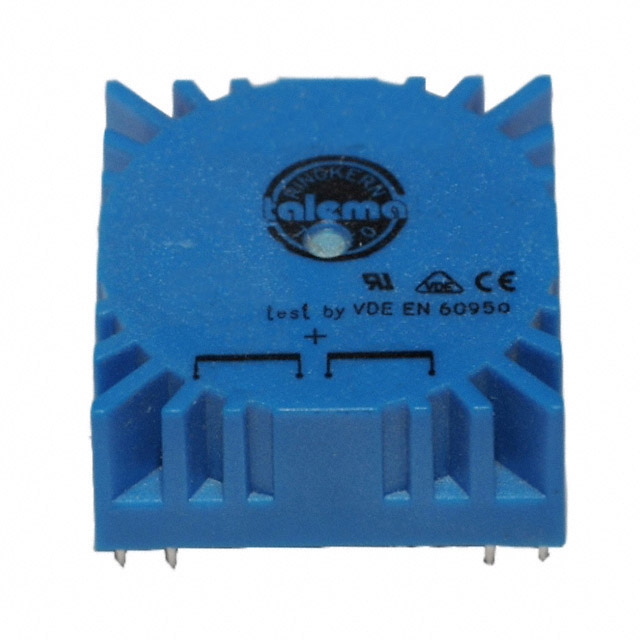

70010K
ActiveTalema Group LLC
PWR XFMR TOROIDAL 3.2VA TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
70010K
ActiveTalema Group LLC
PWR XFMR TOROIDAL 3.2VA TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 70010K |
|---|---|
| Center Tap | False |
| Current - Output (Max) [custom] | 229 mA |
| Current - Output (Max) [custom] | 458 mA |
| Height - Seated (Max) [Max] [z] | 19.5 mm |
| Mounting Type | Through Hole |
| Power - Max [Max] | 3.2 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension [x] | 44.7 mm |
| Size / Dimension [y] | 44.7 mm |
| Termination Style | PC Pin |
| Type | Toroidal |
| Voltage - Isolation | 4000 Vrms |
| Voltage - Primary | 115 V, 230 V |
| Voltage - Secondary (Full Load) | 7 V, 14 V |
| Weight | 0.197 lb |
| Weight | 89.36 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.46 | |
| 24 | $ 21.16 | |||
| 48 | $ 20.49 | |||
| 72 | $ 20.11 | |||
| 120 | $ 19.64 | |||
| 264 | $ 18.93 | |||
| 504 | $ 18.37 | |||
Description
General part information
70010K
PWR XFMR TOROIDAL 3.2VA TH
