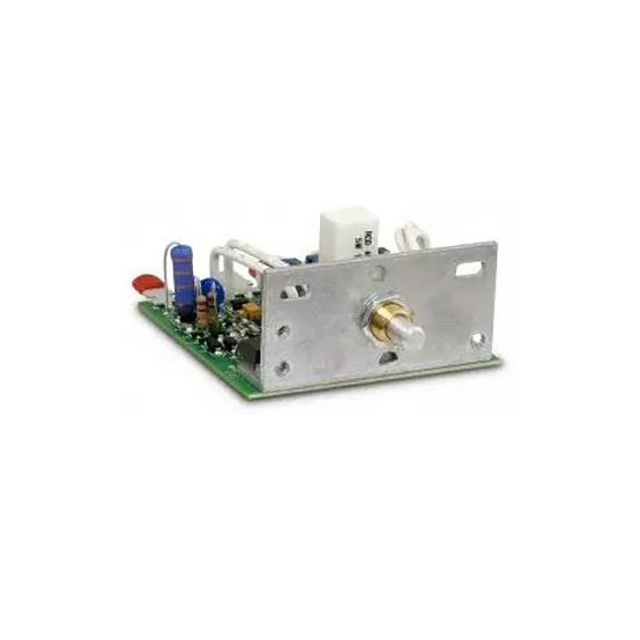

15DV1A
ActiveDart Controls
OEM DC SPEED CONTROL, FHP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15DV1A
ActiveDart Controls
OEM DC SPEED CONTROL, FHP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 15DV1A |
|---|---|
| Control / Drive Type | Brushed |
| Current - Output | 2.1 A |
| Motor Type | Brushed DC |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Type | Board |
| Voltage - Load [Max] | 90 V |
| Voltage - Load [Min] | 0 V |
| Voltage - Supply [Max] | 120 VAC |
| Voltage - Supply [Min] | 100 VAC |
| Wattage - Load | 180 W |
| Weight | 168.28 g |
| Weight | 0.371 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 142.00 | |
| 2 | $ 134.90 | |||
Description
General part information
15DV1A
Brushed 100 ~ 120VAC Supply 2.1A 0 ~ 90VDC Load
Documents
Technical documentation and resources
