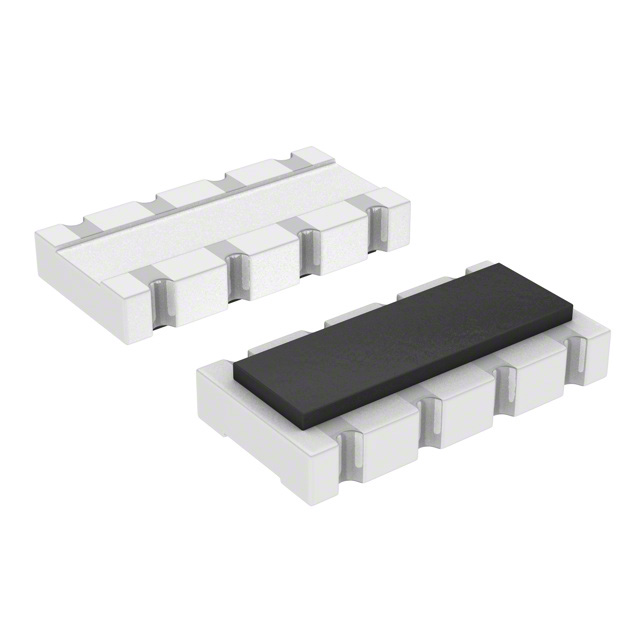

CRB2A4E333JT
ObsoleteKyocera AVX
RES ARRAY 4 RES 33K OHM 0804
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CRB2A4E333JT |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) [Max] [z] | 0.5 mm |
| Height - Seated (Max) [Max] [z] | 0.02 " |
| Mounting Type | Surface Mount |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Concave, 0804, Long Side Terminals |
| Resistance (Ohms) | 33k |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 1 mm |
| Size / Dimension [y] | 0.039 " |
| Supplier Device Package | 0804 |
| Temperature Coefficient | 250 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CRB2A4E333JT
33k Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±250ppm/°C 0804, Concave, Long Side Terminals
