113060200512
ActiveYonggui Electric

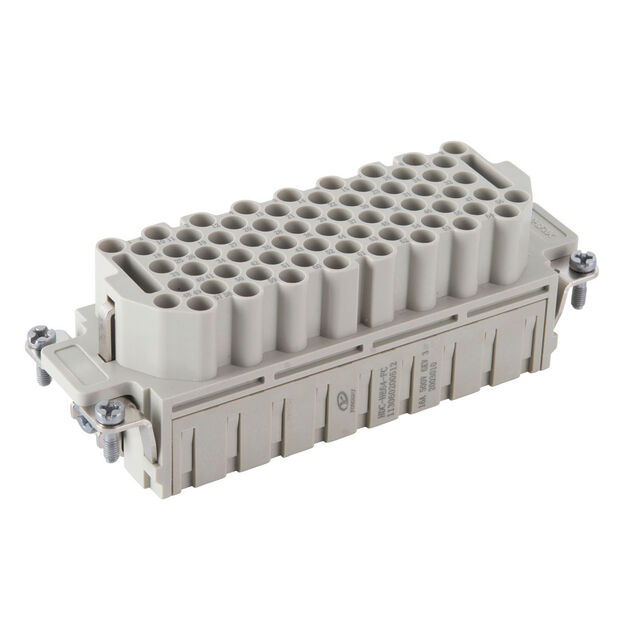

INSERT FEMALE 64POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
113060200512
ActiveYonggui Electric
INSERT FEMALE 64POS+1GND CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 113060200512 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Current Rating (Amps) | 16 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Number of Positions | 64+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 24 B |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 32.56 | |
| 30 | $ 31.31 | |||
| 50 | $ 30.27 | |||
| 100 | $ 28.60 | |||
Description
General part information
113060200512
Female Insert without Contacts Gray 64+Ground Position Crimp
Documents
Technical documentation and resources
No documents available
