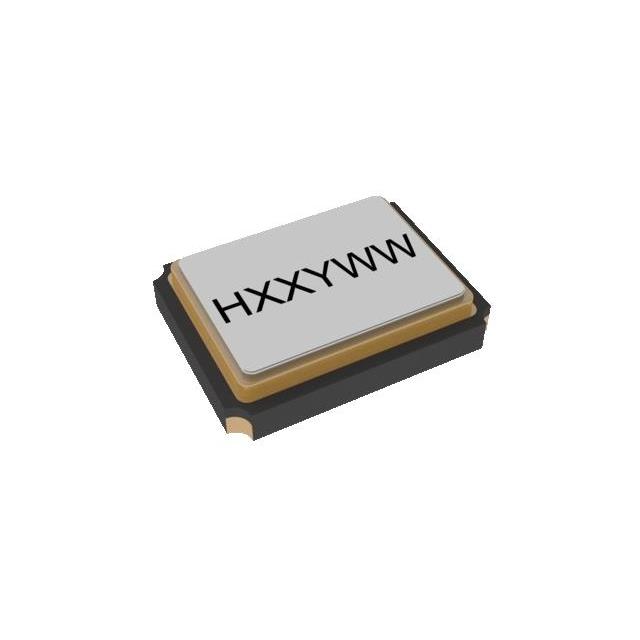

X12A040000BZ1H-HZ
ActiveHarmony Electronics Corp / H.ELE.
HSX1210A/40MHZ/6PF/10PPM/12PPM/-
Deep-Dive with AI
Search across all available documentation for this part.
X12A040000BZ1H-HZ
ActiveHarmony Electronics Corp / H.ELE.
HSX1210A/40MHZ/6PF/10PPM/12PPM/-
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X12A040000BZ1H-HZ |
|---|---|
| Frequency | 40 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 12 ppm |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 1.2 mm |
| Size / Dimension [x] | 0.047 in |
| Size / Dimension [y] | 1 mm |
| Size / Dimension [y] | 0.039 " |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 0.93 | |
Description
General part information
X12A040000BZ1H-HZ
40 MHz ±12ppm Crystal 6pF 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
