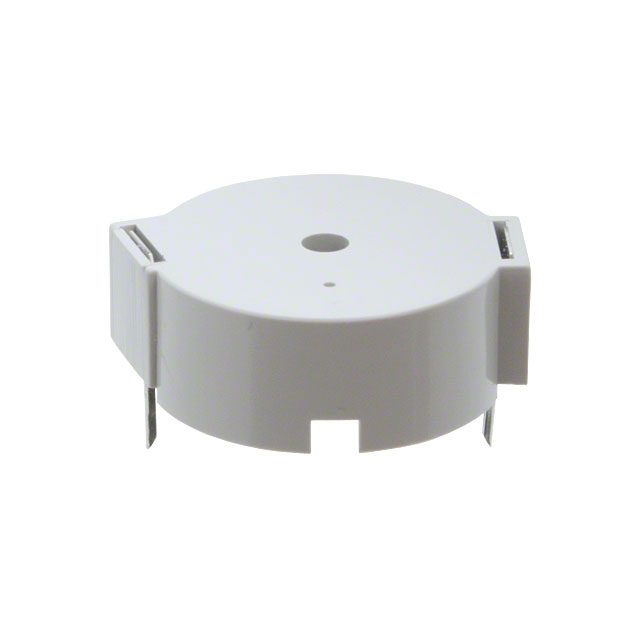

PT-2309

Obsolete

Soberton Inc.

BUZZER PIEZO 10V 22.5MM TH

Search across all available documentation for this part.

Obsolete

Soberton Inc.

BUZZER PIEZO 10V 22.5MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	PT-2309

Current - Supply	3 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	2.048 kHz
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Input Type	Peak-Peak Signal
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Size / Dimension [diameter]	22.5 mm
Size / Dimension [diameter]	0.886 in
Sound Pressure Level (SPL)	85 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	10 V
Voltage Range [Max]	30 V
Voltage Range [Min]	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Transducer, Externally Driven Piezo 10 V 3mA 2.048kHz 85dB @ 10V, 10cm Through Hole PC Pins
