NL1010T-02AC
ActiveMarlow Industries, Inc.
TEM 3.96X3.96X2.4MM
Deep-Dive with AI
Search across all available documentation for this part.
NL1010T-02AC
ActiveMarlow Industries, Inc.
TEM 3.96X3.96X2.4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NL1010T-02AC |
|---|---|
| Current - Max [Max] | 1 A |
| Delta Tmax @ Th | 61 °C |
| Features | Lead Wires, Exterior Metallization |
| Height [z] | 2.4 mm |
| Number of Stages | 1 |
| Qmax @ Th | 0.5 W |
| Resistance | 0.75 Ohms |
| Size / Dimension [x] | 3.96 mm |
| Size / Dimension [y] | 3.96 mm |
| Voltage - Max [Max] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 18.82 | |
Description
General part information
NL1010T-02AC

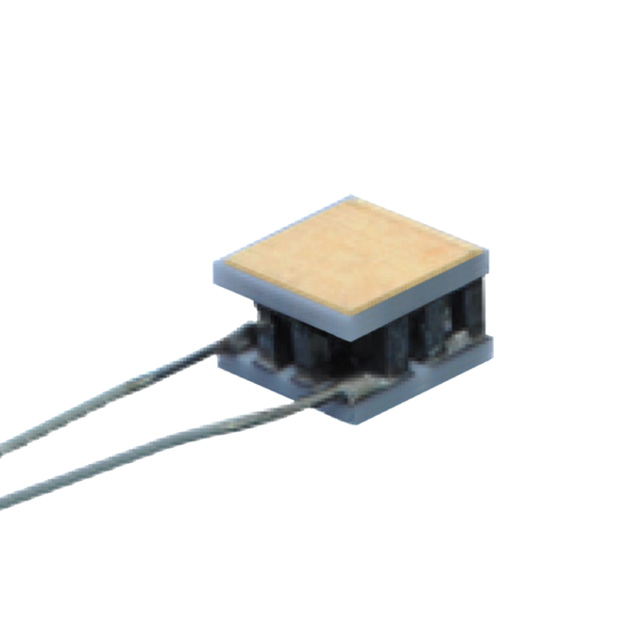

Peltier Module 0.5W @ 27°C 1 A 85°C
Documents
Technical documentation and resources
No documents available
