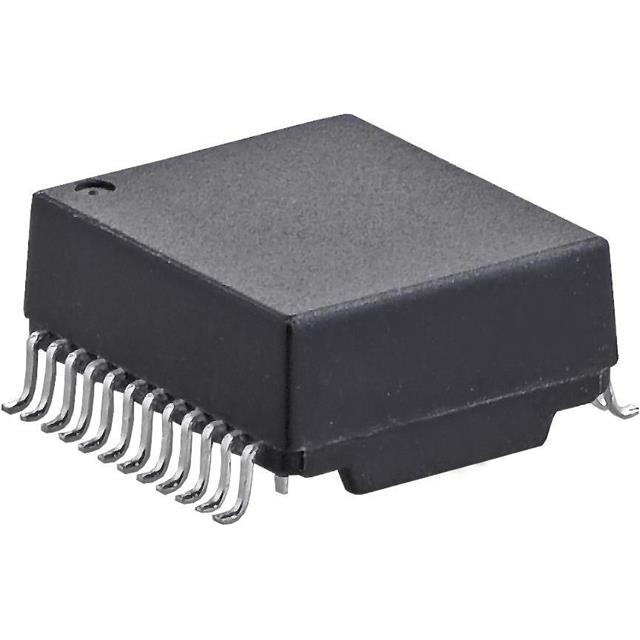

KTFZ-DMS2402CA2-XXX
ActiveKinnexA
TRANSFORMER LAN SINGLE 24PIN STD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KTFZ-DMS2402CA2-XXX |
|---|---|
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Inductance | 160 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 13.6 mm |
| Size / Dimension [x] | 0.535 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Transformer Type | LAN 10G Base-T |
| Turns Ratio - Primary:Secondary | 1:1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.31 | |
| 10 | $ 5.60 | |||
| 50 | $ 4.67 | |||
| 100 | $ 4.43 | |||
| 500 | $ 4.04 | |||
| 1000 | $ 4.00 | |||
Description
General part information
KTFZ-DMS2402CA2-XXX
160µH LAN 10G Base-T Pulse Transformer 1:1 Surface Mount
