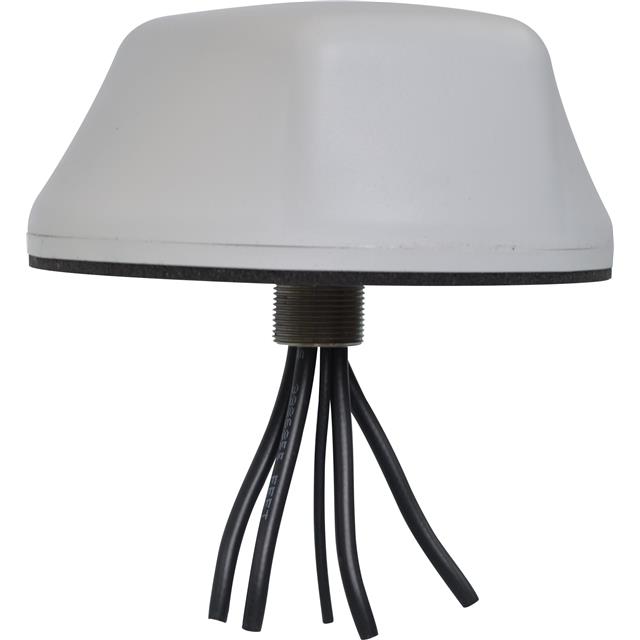

LTM502-3C3C3J3J2C-WHT-180
ActiveMobile Mark Antenna Solutions
5-CABLE 2X LTE, 2X WIFI & GPS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM502-3C3C3J3J2C-WHT-180 |
|---|---|
| Antenna Type | Dome |
| Applications | GLONASS, LTE, GPS, Wi-Fi |
| Features | Cable - 4.572m |
| Frequency (Center/Band) | 2.705 GHz, 2.45 GHz, 1.575 GHz, 5.45 GHz, 827 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 6 GHz, 960 MHz, 2.5 GHz, 3.7 GHz, 1.577 GHz |
| Frequency Range [Min] | 2.4 GHz, 694 MHz, 4.9 GHz, 1.573 GHz, 1.71 GHz |
| Gain | 5 dBi, 4 dBi, 3 dBi |
| Height (Max) [Max] | 70.6 mm |
| Height (Max) [Max] | 2.78 in |
| Ingress Protection | IP67 |
| Mounting Type | Surface Mount |
| Number of Bands [custom] | 5 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Navigation, WiFi, Cellular |
| Termination | RP-SMA (2), SMA (3) |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 237.55 | |
Description
General part information
LTM502-3C3C3J3J2C-WHT-180
RF ANTENNA GLONASS, GPS, LTE, Wi-Fi Dome SMA (3), RP-SMA (2) Surface Mount
