IND-YZ0612H-2536
ActiveINEED MOTOR

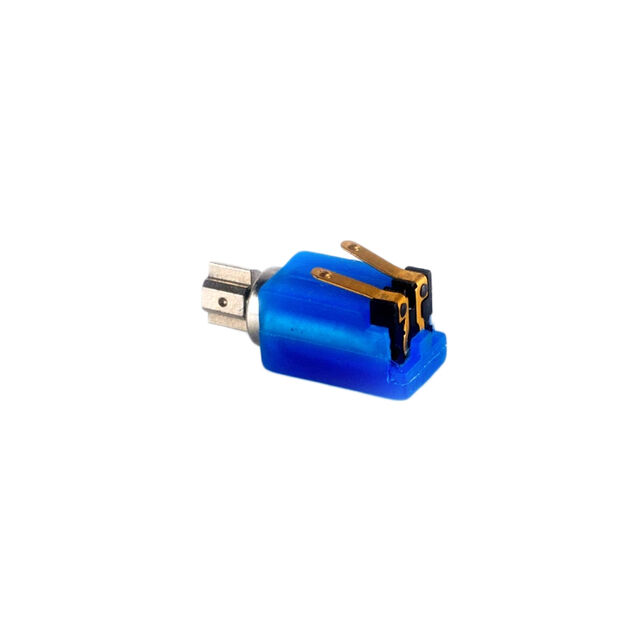

6MM LOW CURRENT VIBRATION MOTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IND-YZ0612H-2536 |
|---|---|
| Diameter - Shaft [diameter] | 6.8 mm |
| Diameter - Shaft [diameter] | 0.268 " |
| Function | ERM, Vibration |
| Length - Shaft and Bearing [custom] | 17.8 mm |
| Length - Shaft and Bearing [custom] | 0.701 in |
| Motor Type | Brushed |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 9500 RPM |
| Termination Style | Quick Connect |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.98 | |
| 5 | $ 0.92 | |||
| 10 | $ 0.89 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.52 | |||
Description
General part information
IND-YZ0612H-2536
Brushed Vibration, ERM 9500 RPM 3VDC
