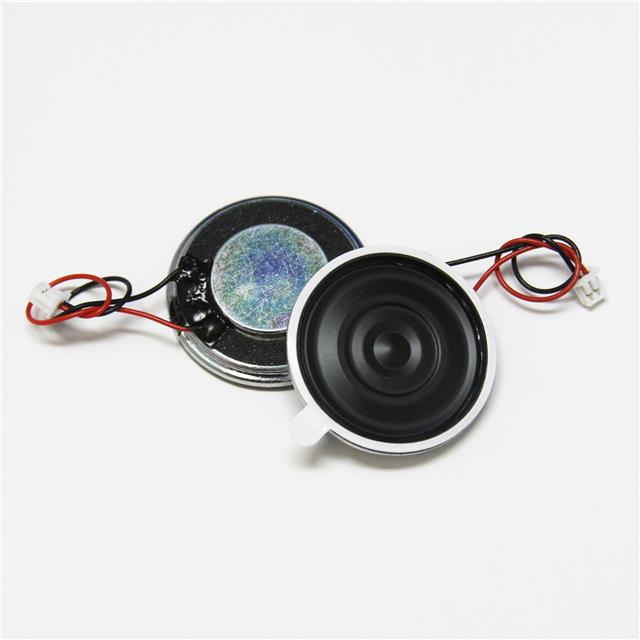

CS28-02W190-05-1X
ActiveChallenge Electronics
SPEAKER 8OHM 2W TOP PORT 103DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS28-02W190-05-1X
ActiveChallenge Electronics
SPEAKER 8OHM 2W TOP PORT 103DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS28-02W190-05-1X |
|---|---|
| Efficiency - dBA | 103 dBA |
| Efficiency - Testing | 100 mm, 500 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1.9 kHz |
| Frequency Range [Max] | 7 kHz |
| Frequency Range [Min] | 1.52 kHz |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Impedance | 8 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Power - Max [Max] | 2.5 W |
| Power - Rated | 2 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.102 in |
| Size / Dimension [diameter] | 28 mm |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.34 | |
| 10 | $ 2.72 | |||
| 25 | $ 2.51 | |||
| 40 | $ 2.40 | |||
| 80 | $ 2.26 | |||
| 230 | $ 2.06 | |||
| 440 | $ 1.95 | |||
| 945 | $ 1.82 | |||
Description
General part information
CS28-02W190-05-1X
8 Ohms General Purpose Speaker 2 W 1.52 kHz ~ 7 kHz Top Round
