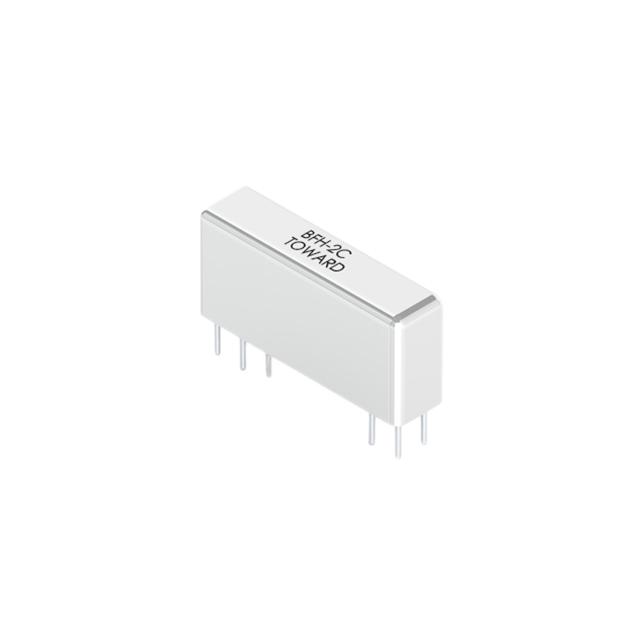

BFH-2C05
ActiveBright Toward Industrial Co., Ltd.
200V/0.5A REED RELAY, 2 FORM C,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BFH-2C05
ActiveBright Toward Industrial Co., Ltd.
200V/0.5A REED RELAY, 2 FORM C,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BFH-2C05 |
|---|---|
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 250 mA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 2.5 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 1.5 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage [Max] | 100 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 21.56 | |
| 10 | $ 18.83 | |||
| 25 | $ 17.85 | |||
| 50 | $ 17.13 | |||
| 100 | $ 16.45 | |||
| 250 | $ 15.59 | |||
| 500 | $ 14.97 | |||
Description
General part information
BFH-2C05
200V/0.5A REED RELAY, 2 FORM C,
