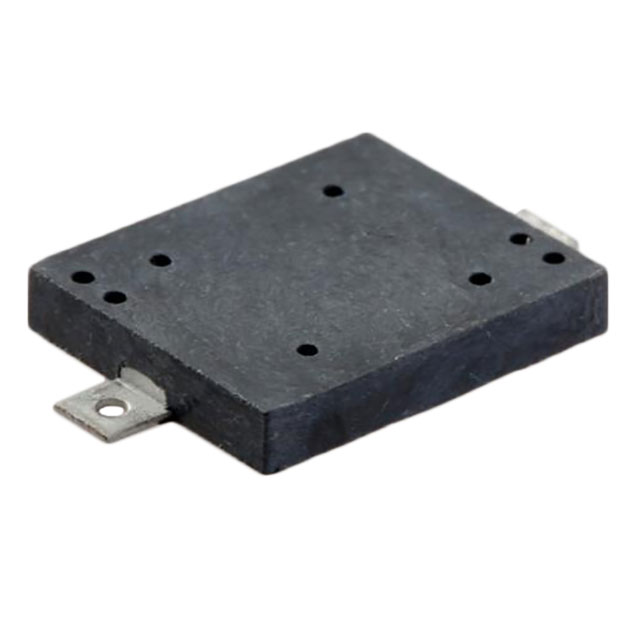

BSP1109-05H1.7
ActiveBeStar Technologies, Inc.
BUZZER PIEZO 5V 12X12MM" W SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BSP1109-05H1.7
ActiveBeStar Technologies, Inc.
BUZZER PIEZO 5V 12X12MM" W SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BSP1109-05H1.7 |
|---|---|
| Current - Supply | 1 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4.1 kHz |
| Height - Seated (Max) [Max] | 0.067 in |
| Height - Seated (Max) [Max] | 1.7 mm |
| Input Type | Peak-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [x] | 11 mm |
| Size / Dimension [x] | 0.433 in |
| Size / Dimension [y] | 0.354 in |
| Size / Dimension [y] | 9 mm |
| Sound Pressure Level (SPL) | 70 dB |
| Technology | Piezo |
| Termination | Solder Tabs |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 25 VDC |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 4.00 | |
| 25 | $ 2.67 | |||
| 50 | $ 2.00 | |||
| 100 | $ 1.33 | |||
Description
General part information
BSP1109-05H1.7
Buzzers Transducer, Externally Driven Piezo 5 V 1mA 4.1kHz 70dB @ 5V, 10cm Surface Mount Solder Tabs
Documents
Technical documentation and resources
