FHCD-SG020G1NBOL-E-F01
ActiveSUPERIOR TECH

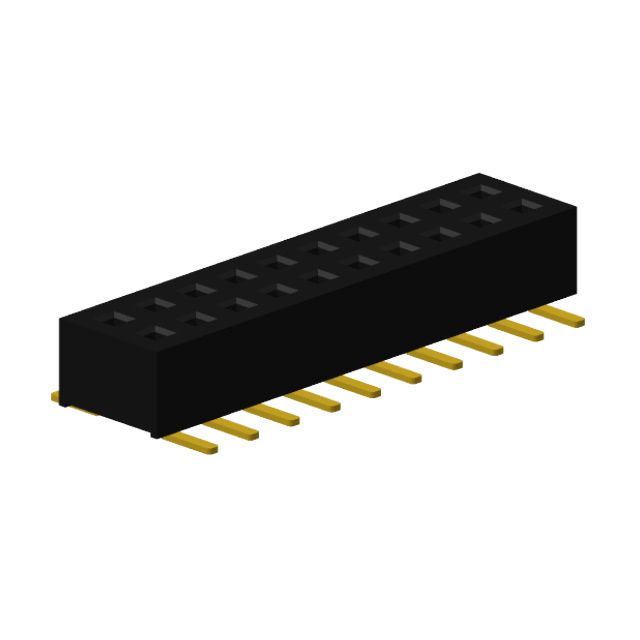

FEMALE HEADER VERTICAL 20POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FHCD-SG020G1NBOL-E-F01
ActiveSUPERIOR TECH
FEMALE HEADER VERTICAL 20POS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FHCD-SG020G1NBOL-E-F01 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 1.85 mm |
| Contact Length - Post [x] | 0.073 " |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 2.1 mm |
| Insulation Height | 0.083 " |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.70 | |
| 10 | $ 1.44 | |||
| 100 | $ 1.22 | |||
| 500 | $ 1.09 | |||
| Digi-Reel® | 1 | $ 1.70 | ||
| 10 | $ 1.44 | |||
| 100 | $ 1.22 | |||
| 500 | $ 1.09 | |||
| Tape & Reel (TR) | 1500 | $ 0.86 | ||
| 3000 | $ 0.84 | |||
Description
General part information
FHCD-SG020G1NBOL-E-F01
20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
