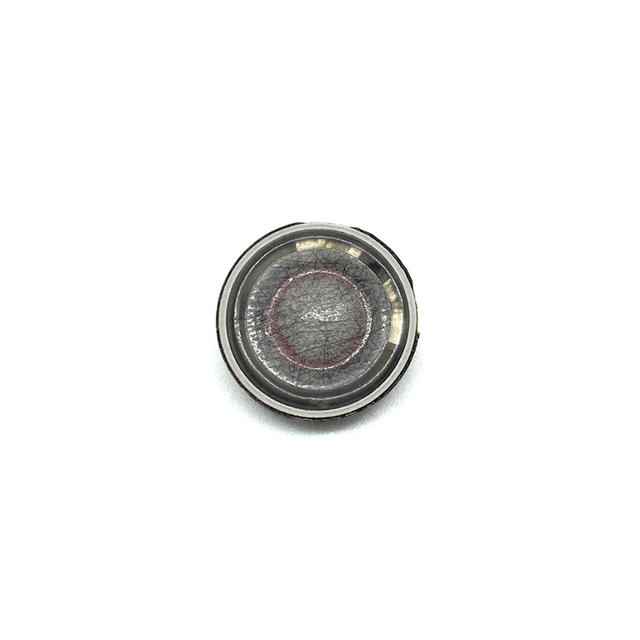

OWR-1340T-38A
ActiveOle Wolff Electronics Inc
SPEAKER 38OHM 2MW TOP PORT 84DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OWR-1340T-38A |
|---|---|
| Efficiency - dBA | 84 dBA |
| Efficiency - Testing | 1mW/10mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 200 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 20 Hz |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Impedance | 38 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone [custom] | Plastic |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Port Location | Top |
| Power - Max [Max] | 5 mW |
| Power - Rated | 2 mW |
| Shape | Round |
| Size / Dimension [diameter] | 0.512 in |
| Size / Dimension [diameter] | 13 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.62 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.22 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.08 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.93 | |||
| 1000 | $ 0.88 | |||
| 5000 | $ 0.82 | |||
Description
General part information
OWR-1340T-38A
38 Ohms Earphone Driver Speaker 2 mW 20 Hz ~ 20 kHz Top Round
