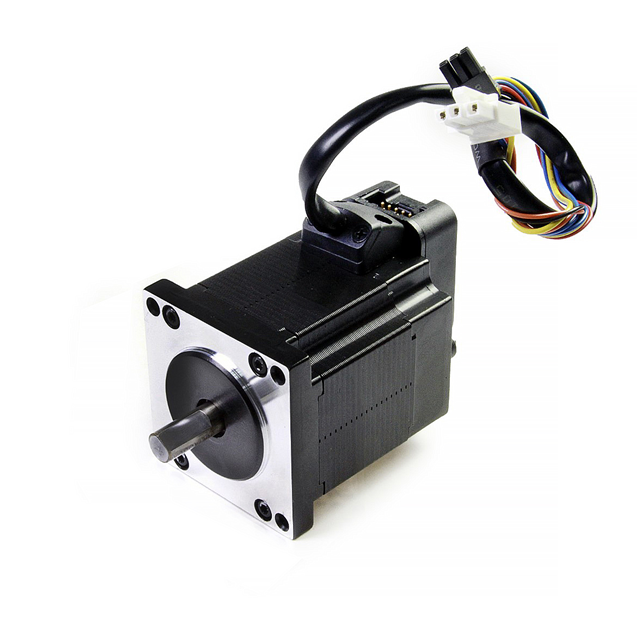

BL23E33-01D-04RO
ActiveLIN ENGINEERING
BLDC MOTOR WITH ENCODER
Deep-Dive with AI
Search across all available documentation for this part.
BL23E33-01D-04RO
ActiveLIN ENGINEERING
BLDC MOTOR WITH ENCODER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BL23E33-01D-04RO |
|---|---|
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Encoder Type | Incremental |
| Function | Standard |
| Length - Shaft and Bearing [x] | 0.827 in |
| Length - Shaft and Bearing [x] | 21 mm |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 47.14 mm |
| Mounting Hole Spacing | 1.856 in |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power - Rated | 120 W |
| RPM | 4000 RPM |
| Size / Dimension [x] | 56.2 mm |
| Size / Dimension [x] | 2.213 in |
| Size / Dimension [y] | 56.2 mm |
| Size / Dimension [y] | 2.213 in |
| Torque - Max Momentary (oz-in / mNm) | 580 mNm |
| Torque - Max Momentary (oz-in / mNm) | 82 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 246.54 | |
| 5 | $ 240.97 | |||
| 10 | $ 236.34 | |||
| 32 | $ 231.71 | |||
Description
General part information
BL23E33-01D-04RO
Brushless (BLDC) DC Motor Standard 4000 RPM 120W Incremental 24VDC
