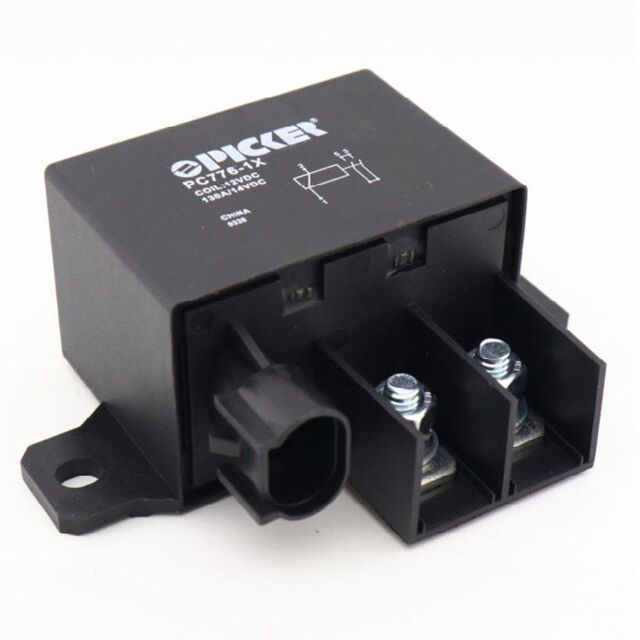

PC776-1X-24C-R-X
ActivePicker Components
RELAY AUTOMOTIVE SPST 130A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC776-1X-24C-R-X
ActivePicker Components
RELAY AUTOMOTIVE SPST 130A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC776-1X-24C-R-X |
|---|---|
| Coil Current | 170.2 mA |
| Coil Power | 4.1 W |
| Coil Resistance | 141 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 130 A |
| Features | IP54 - Dust Protected, Water Resistant |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 14.4 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 40 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 4 | $ 48.87 | |
Description
General part information
PC776-1X-24C-R-X
RELAY AUTOMOTIVE SPST 130A 24V
Documents
Technical documentation and resources
