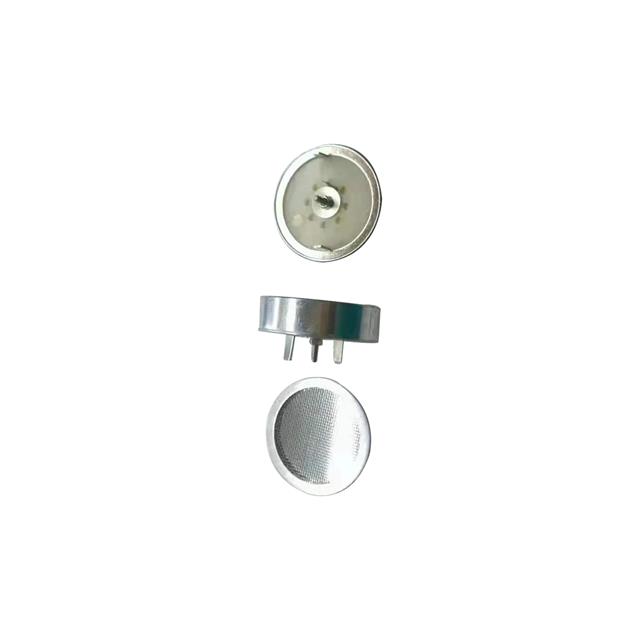

UB2564
ActiveHuizhou N Acoustics Co., Ltd
MIC COND UNI -42DB 0.984"DIA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UB2564
ActiveHuizhou N Acoustics Co., Ltd
MIC COND UNI -42DB 0.984"DIA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UB2564 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Unidirectional |
| Height (Max) [Max] | 0.26 in |
| Height (Max) [Max] | 6.6 mm |
| Port Location | Top |
| S/N Ratio | 66 dB |
| Sensitivity | -42 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 25 mm |
| Size / Dimension [diameter] | 0.984 " |
| Termination | PC Pins |
| Type | Electret Condenser |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.50 | |
| 10 | $ 5.32 | |||
| 25 | $ 5.13 | |||
| 50 | $ 4.95 | |||
| 100 | $ 4.58 | |||
Description
General part information
UB2564
50 Hz ~ 16 MHz Microphone Electret Condenser 1 V ~ 10 V Unidirectional (-42dB ±3dB @ 120dB SPL) PC Pins
