P8-75-252-12-S
ActiveActuonix Motion Devices Inc

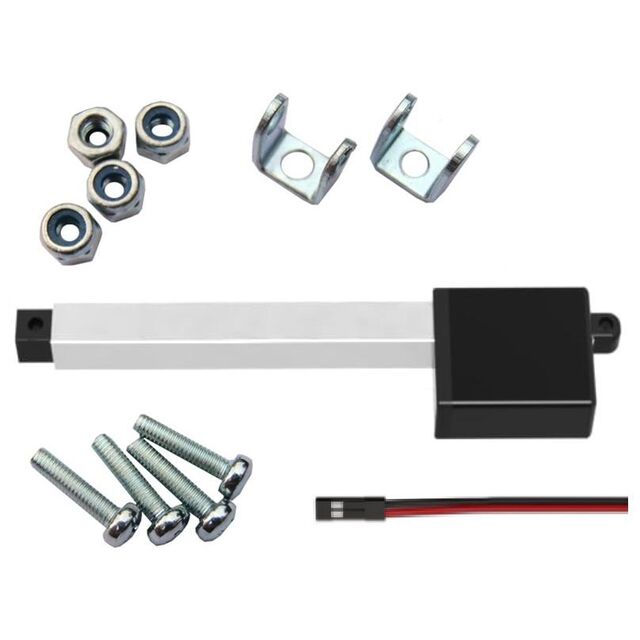

P8-S MICRO LINEAR ACTUATOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P8-75-252-12-S
ActiveActuonix Motion Devices Inc
P8-S MICRO LINEAR ACTUATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P8-75-252-12-S |
|---|---|
| Accuracy | 0.4 mm |
| Construction | Lead Screw |
| Duty Cycle | 20 % |
| Features | Limit Switches |
| Gear Reduction Ratio | 252 |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Load Force (Dynamic) | 33.72 lbf |
| Load Force (Dynamic) | 150 N |
| Load Force (Static) | 40.46 lbf |
| Load Force (Static) | 180 N |
| Motor Type | Brushed |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Speed | 6.2 mm/s |
| Speed | 0.24 in/s |
| Stroke Length [x] | 2.953 in |
| Stroke Length [x] | 75 mm |
| Termination Style | Cable with Connector |
| Type | Linear Actuator |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 100.00 | |
Description
General part information
P8-75-252-12-S
P8-S MICRO LINEAR ACTUATOR
