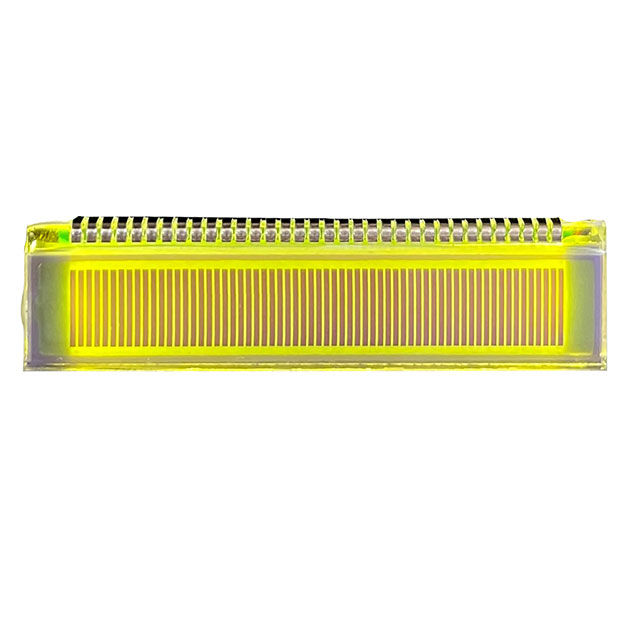

MC64SEG3-GPTLY3
ActiveMIDAS DISPLAYS
GRAPHIC DISPLAY STN BLACK -
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC64SEG3-GPTLY3
ActiveMIDAS DISPLAYS
GRAPHIC DISPLAY STN BLACK -
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MC64SEG3-GPTLY3 |
|---|---|
| Background Color | Yellow/Green |
| Controller Type | HT1621, HT1623 |
| Diagonal Screen Size | 54.74 mm |
| Diagonal Screen Size | 2.15 in |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pixels [x] | 64 |
| Dot Pixels [y] | 1 |
| Graphics Color | Black |
| Interface | Parallel |
| Touchscreen | Non-Touch |
| Viewing Area [x] | 54 mm |
| Viewing Area [y] | 9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.28 | |
| 10 | $ 3.03 | |||
| 30 | $ 2.81 | |||
| 50 | $ 2.63 | |||
| 100 | $ 2.56 | |||
| 200 | $ 2.48 | |||
| 300 | $ 2.40 | |||
| 500 | $ 2.32 | |||
| 1000 | $ 2.24 | |||
Description
General part information
MC64SEG3-GPTLY3
Non-Touch Graphic LCD Display Module Transflective Black STN - Super-Twisted Nematic Parallel 2.15" (54.74mm) 64 x 1
