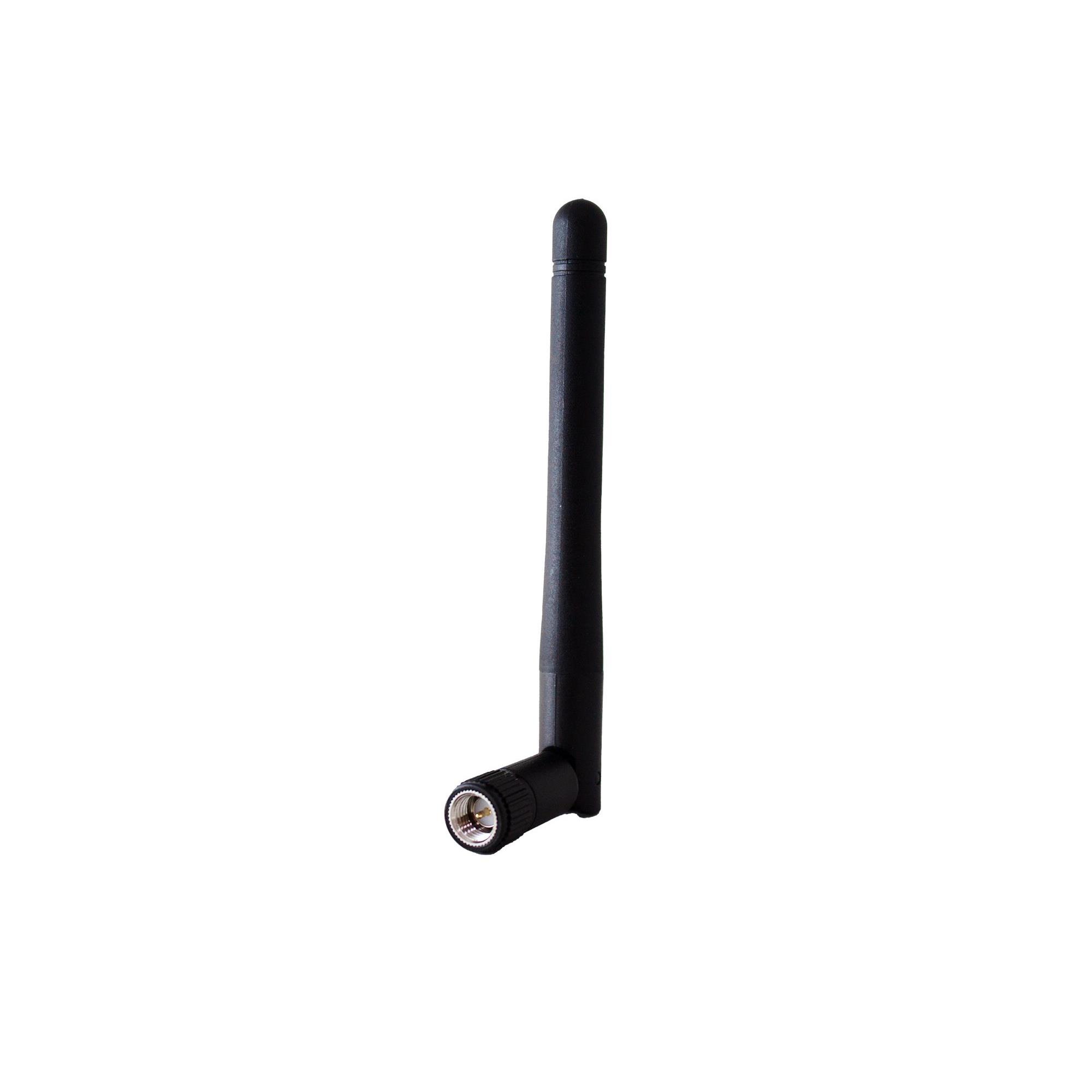

GWX-241BRS3B

Active

Joymax Electronics

ANT LPWA WHIP RP-SMA PLUG FEMALE

Search across all available documentation for this part.

Active

Joymax Electronics

ANT LPWA WHIP RP-SMA PLUG FEMALE

Technical Specifications

Parameters and characteristics for this part

Specification	GWX-241BRS3B

Antenna Type	Tilt, Whip
Applications	Sensor Networks, LoRa, ISM, Sigfox
Frequency (Center/Band)	915 MHz, 868 MHz
Frequency Group [Max]	1 GHz
Frequency Group [Min]	300 MHz
Frequency Range [Max]	930 MHz, 876 MHz
Frequency Range [Min]	902 MHz, 862 MHz
Gain	2.3 dBi
Height (Max) [Max]	4.252 in
Height (Max) [Max]	108 mm
Mounting Type	Connector Mount
Number of Bands	2
Power - Max [Max]	1 W
Return Loss [Max]	-10 dB
Return Loss [Min]	-13 dB
RF Family/Standard	General ISM
Termination	RP-SMA Female
VSWR [Max]	1.7
VSWR [Min]	1.6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 4.80

General part information

868MHz, 915MHz ISM, LoRa, Sensor Networks, SigFox Whip, Tilt RF Antenna 862MHz ~ 876MHz, 902MHz ~ 930MHz 2.3dBi, 2.3dBi RP-SMA Female Connector Mount
