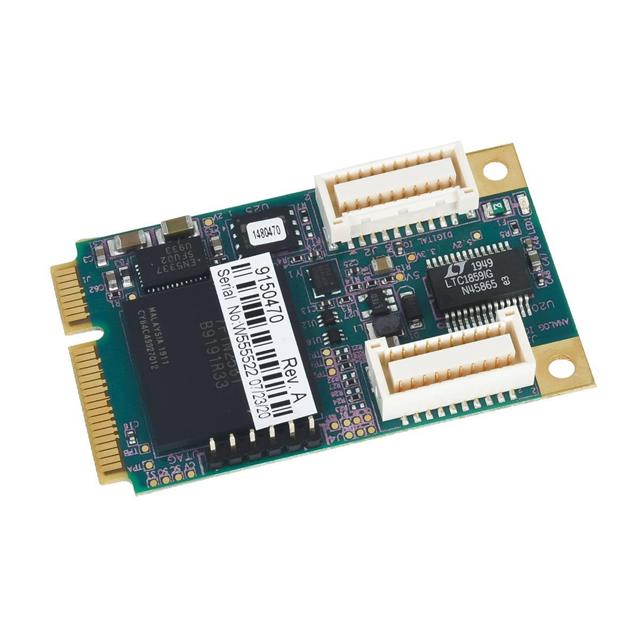

DS-MPE-DAQ0804
ActiveDiamond Systems
MINICARD ANALOG IO 8 AIN 4 AOUT
Deep-Dive with AI
Search across all available documentation for this part.
DS-MPE-DAQ0804
ActiveDiamond Systems
MINICARD ANALOG IO 8 AIN 4 AOUT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DS-MPE-DAQ0804 |
|---|---|
| Analog Input:Output [custom] | 0 |
| Analog Input:Output [custom] | 4 |
| Digital I/O Lines | 14 |
| Expansion Site/Bus | PCIe |
| Form Factor | Mini PCIe module (full size) |
| Function | Digital I/O and PCIe |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 462 mW |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 1.179 in |
| Size / Dimension [y] | 29.97 mm |
| Watchdog Timer | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 435.00 | |
| 5 | $ 408.00 | |||
Description
General part information
DS-MPE-DAQ0804
MINICARD ANALOG IO 8 AIN 4 AOUT
Documents
Technical documentation and resources
No documents available
