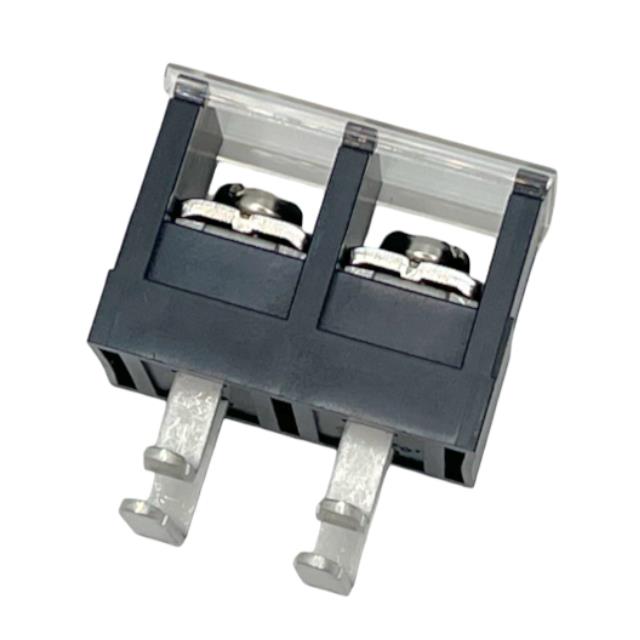

OTB-910-BL-02P-C
ActiveBlockMaster Electronics
PCB TERMINAL BLOCK, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OTB-910-BL-02P-C
ActiveBlockMaster Electronics
PCB TERMINAL BLOCK, RIGHT ANGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OTB-910-BL-02P-C |
|---|---|
| Color | Black |
| Current Rating (Amps) | 115 A |
| Mounting Type | Through Hole |
| Number of Circuits | 2 |
| Number of Wire Entries | 2 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.63 in |
| Pitch [x] | 16 mm |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Nickel |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 2 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 11.02 | |
Description
General part information
OTB-910-BL-02P-C
2 Circuit 0.630" (16.00mm) Barrier Block Connector Screws
