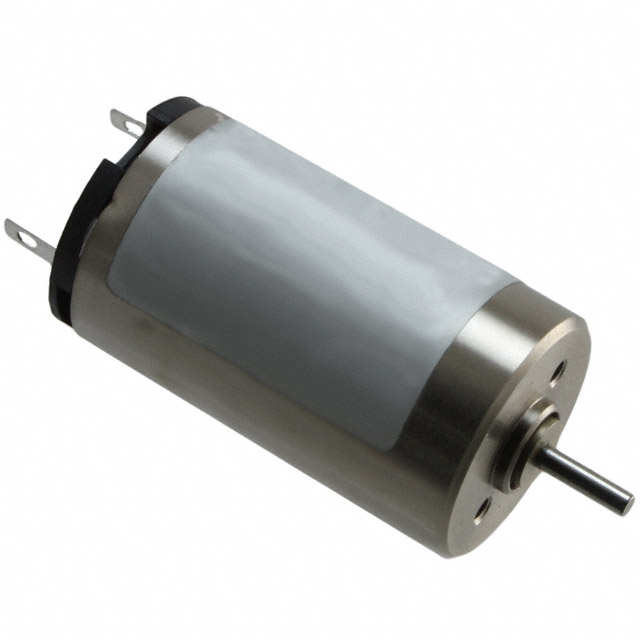

16N78-212P.1001
ActivePortescap
STANDARD MOTOR 10000 RPM 6V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 16N78-212P.1001 |
|---|---|
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Function | Standard |
| Length - Shaft and Bearing | 7.5 mm |
| Length - Shaft and Bearing [x] | 0.295 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 9 mm |
| Mounting Hole Spacing | 0.354 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 5.4 W |
| RPM | 10000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 16 mm |
| Size / Dimension [diameter] | 0.629 " |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.977 oz-in |
| Torque - Rated (oz-in / mNm) | 6.9 mNm |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
| Weight | 24.04 g |
| Weight | 0.053 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 91.08 | |
| 5 | $ 89.48 | |||
| 20 | $ 87.88 | |||
| 40 | $ 86.28 | |||
| 60 | $ 85.00 | |||
| 100 | $ 83.09 | |||
Description
General part information
16N78-212P.1001
Brushed DC Motor Standard 10000 RPM 5.4W 6VDC
