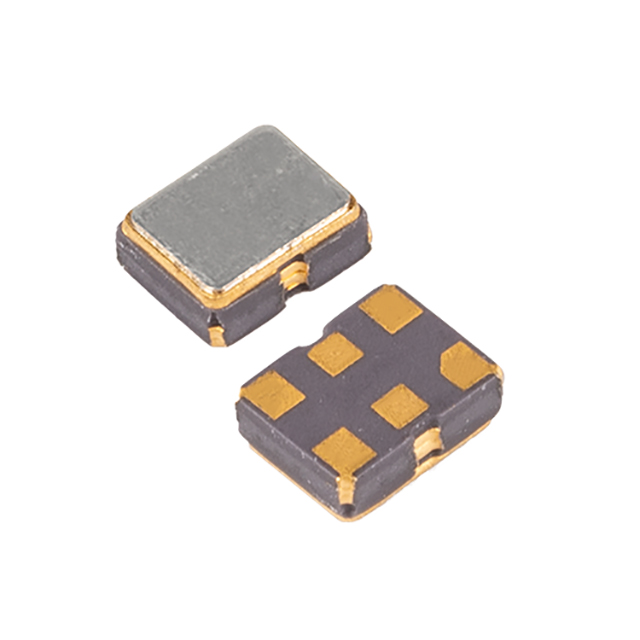

525T48020ITR
ActiveTusonix a Subsidiary of CTS Electronic Components
XTAL OSC TCXO 48.0000MHZ SNWV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 525T48020ITR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 2.5 mA |
| Frequency | 48 MHz |
| Frequency Stability | 2 ppm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.90 | |
Description
General part information
525T48020ITR
48 MHz TCXO Clipped Sine Wave Oscillator 2.8V 4-SMD, No Lead
