CRGS2010J330R
ActiveTE Connectivity Raychem Cable Protection
RES SMD 330 OHM 5% 3/4W 2010
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CRGS2010J330R
ActiveTE Connectivity Raychem Cable Protection
RES SMD 330 OHM 5% 3/4W 2010
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CRGS2010J330R |
|---|---|
| Composition | Thick Film |
| Features | Pulse Withstanding |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2010 (5025 Metric) |
| Power (Watts) | 0.75 W |
| Power (Watts) | 0.75 W |
| Resistance | 330 Ohms |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.098 in |
| Size / Dimension [y] | 2.5 mm |
| Supplier Device Package | 2010 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 12000 | $ 0.18 | |
Description
General part information
CRGS2010J330R

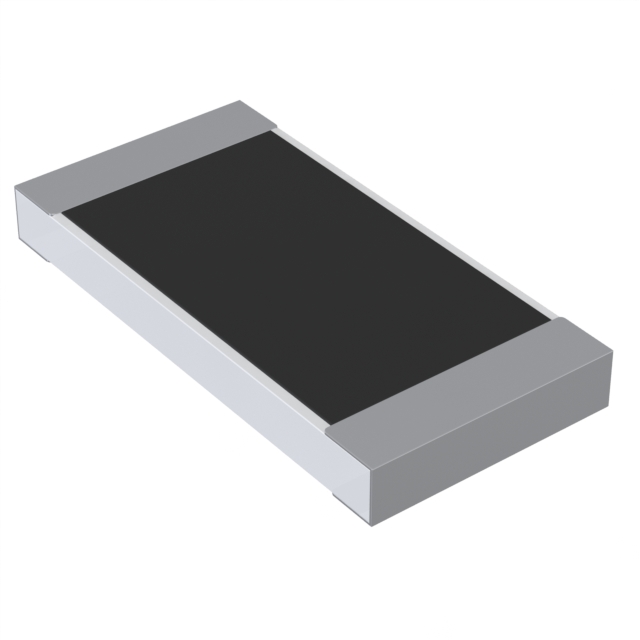

330 Ohms ±5% 0.75W, 3/4W Chip Resistor 2010 (5025 Metric) Pulse Withstanding Thick Film
