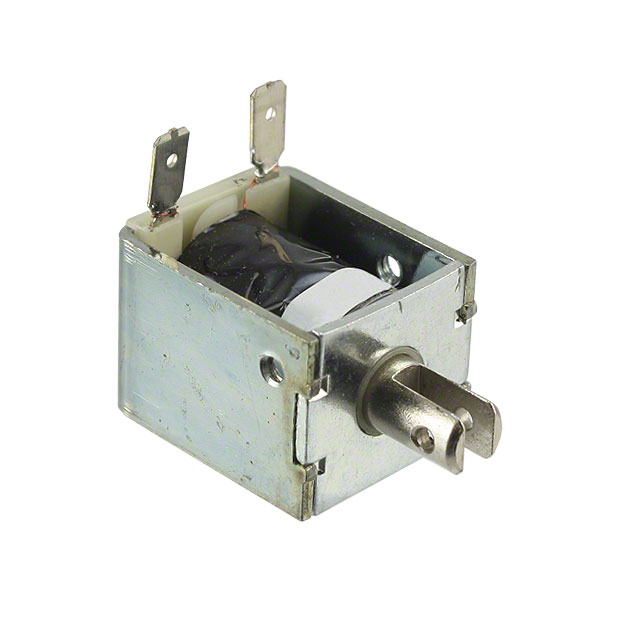

F0423A
ActiveSumida America Inc.
SOLENOID PULL CONTINUOUS 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F0423A
ActiveSumida America Inc.
SOLENOID PULL CONTINUOUS 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F0423A |
|---|---|
| DC Resistance (DCR) | 90 Ohm |
| Diameter - Shaft [diameter] | 7.93 mm |
| Diameter - Shaft [diameter] | 0.312 in |
| Duty Cycle | Continuous |
| Mounting Type | Chassis Mount |
| Power (Watts) | 6.4 W |
| Shaft Detail | Clevis |
| Size / Dimension [x] | 29.46 mm |
| Size / Dimension [x] | 1.16 in |
| Size / Dimension [y] | 0.81 in |
| Size / Dimension [y] | 20.57 mm |
| Size / Dimension [z] | 23.88 mm |
| Size / Dimension [z] | 0.94 in |
| Stroke Length | 0.5 in |
| Stroke Length | 12.7 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Open Frame (Pull) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.46 | |
| 10 | $ 20.39 | |||
| 25 | $ 19.32 | |||
| 50 | $ 18.24 | |||
| 100 | $ 17.17 | |||
| 250 | $ 16.10 | |||
| 500 | $ 15.02 | |||
Description
General part information
F0423A
Continuous Duty Solenoid Open Frame (Pull) Type 0.500" (12.70mm) Stroke 24VDC Chassis Mount
