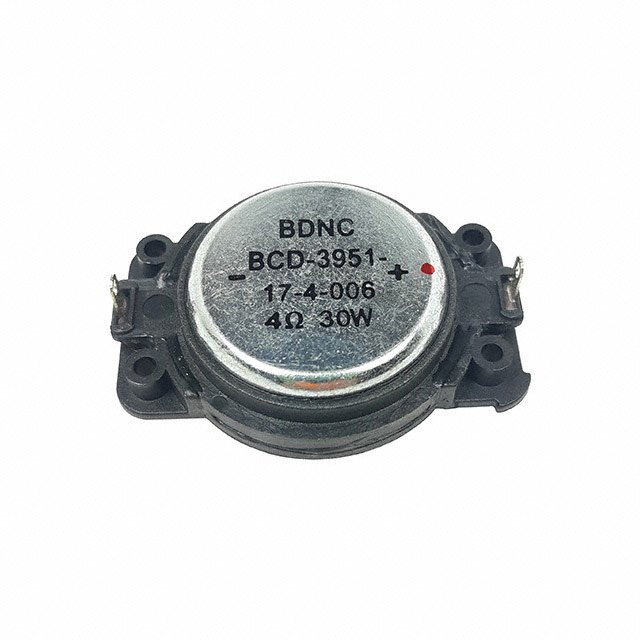

BCD-3951-17-4-006
ObsoleteGlass Acoustic Innovations Co. Ltd.
SPEAKER 4OHM 30W TOP PORT 86DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BCD-3951-17-4-006
ObsoleteGlass Acoustic Innovations Co. Ltd.
SPEAKER 4OHM 30W TOP PORT 86DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BCD-3951-17-4-006 |
|---|---|
| Efficiency - dBA | 86 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1200 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 500 Hz |
| Height - Seated (Max) [Max] | 16.8 mm |
| Height - Seated (Max) [Max] | 0.661 " |
| Impedance | 4 Ohms |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 90 W |
| Power - Rated | 30 W |
| Shape | Oval, Rectangular Frame |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | Tweeter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BCD-3951-17-4-006
4 Ohms Tweeter Speaker 30 W 500 Hz ~ 20 kHz Top Oval, Rectangular Frame
