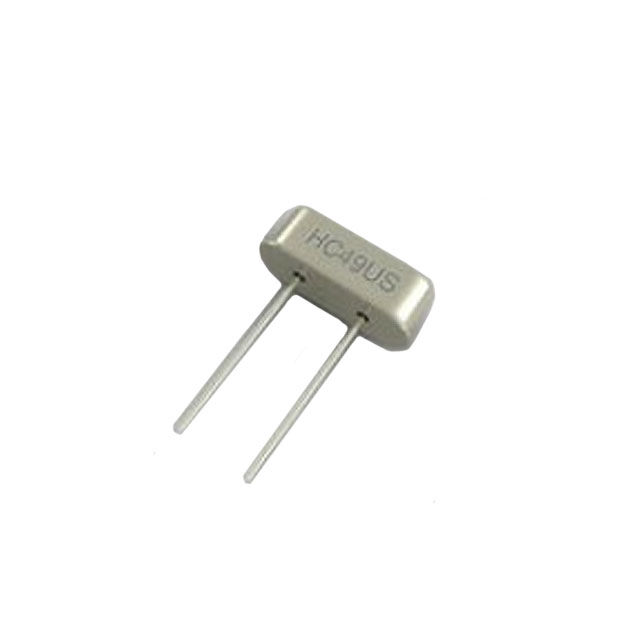

HC49US-FF3F18-4.000MHZ
ActiveILSI
CRYSTAL 4.0000MHZ 18PF TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HC49US-FF3F18-4.000MHZ
ActiveILSI
CRYSTAL 4.0000MHZ 18PF TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HC49US-FF3F18-4.000MHZ |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 4 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] [z] | 3.5 mm |
| Height - Seated (Max) [Max] [z] | 0.138 in |
| Load Capacitance | 18 pF |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | HC-49/US |
| Size / Dimension [x] | 0.437 in |
| Size / Dimension [x] | 11.1 mm |
| Size / Dimension [y] | 4.7 mm |
| Size / Dimension [y] | 0.185 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.22 | |
Description
General part information
HC49US-FF3F18-4.000MHZ
4 MHz ±30ppm Crystal 18pF 150 Ohms HC-49/US
