TNL-FIW103
ActiveIoTize
RF TXRX MOD BT INT CHIP CONN MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TNL-FIW103 |
|---|---|
| Antenna Type | Chip, PCB, Integrated |
| Current - Receiving | 50 mA |
| Current - Transmitting | 110 mA |
| Data Rate | 54 Mbps |
| Frequency [Max] | 2.484 GHz |
| Frequency [Min] | 2.412 GHz |
| Mounting Type | Connector Mount |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Power - Output | 15 dBm |
| Protocol | 802.11b/g/n, NFC, Bluetooth v4.2 |
| RF Family/Standard | NFC, WiFi, Bluetooth |
| Sensitivity | -93 dBm |
| Serial Interfaces | SWD, UART, GPIO |
| Utilized IC / Part | ESP32‐D0WD, ST25DV |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 36.50 | |
| 10 | $ 34.74 | |||
Description
General part information

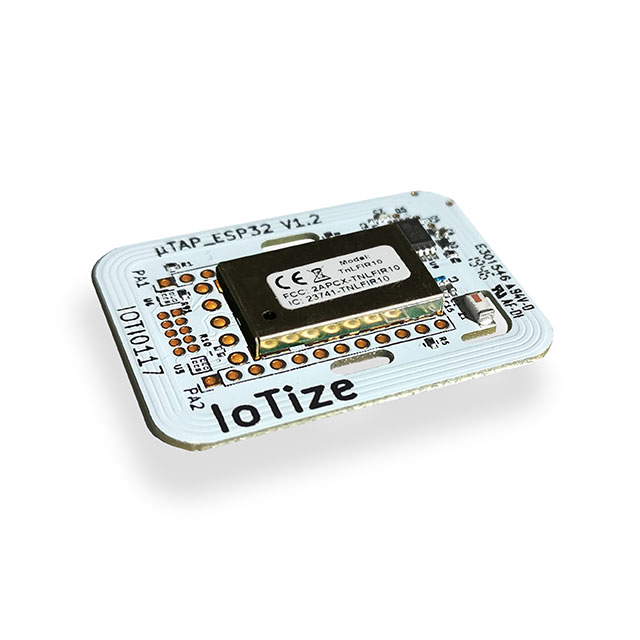

TNL-FIW103
Bluetooth, NFC, WiFi 802.11b/g/n, Bluetooth v4.2, NFC Transceiver Module 2.412GHz ~ 2.484GHz Integrated, Chip, PCB Connector Mount
