RG214-LSZH-SF-UMRA(QTY:19ft)
ActiveMcGill Microwave Systems
RG214-LSZH CABLE ASSY 19FT SF TO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RG214-LSZH-SF-UMRA(QTY:19ft) |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | UHF Plug, Right Angle |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-214 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1.1 GHz |
| Length | 228 in |
| Length | 19 ft |
| Length | 5.8 m |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to UHF |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 101.45 | |
| 10 | $ 96.84 | |||
| 25 | $ 92.23 | |||
Description
General part information
RG214-LSZH-SF-UMRA(QTY:19ft)

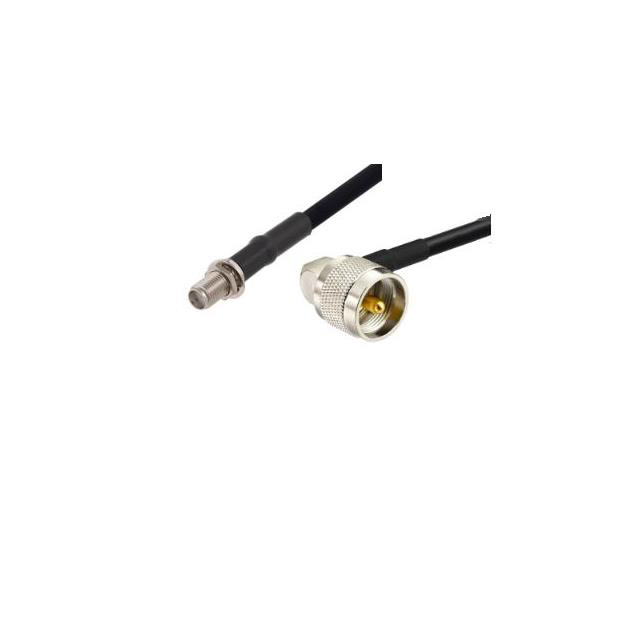

Cable Assembly Coaxial SMA to UHF RG-214 228.0" (5.8m) 19.0'
