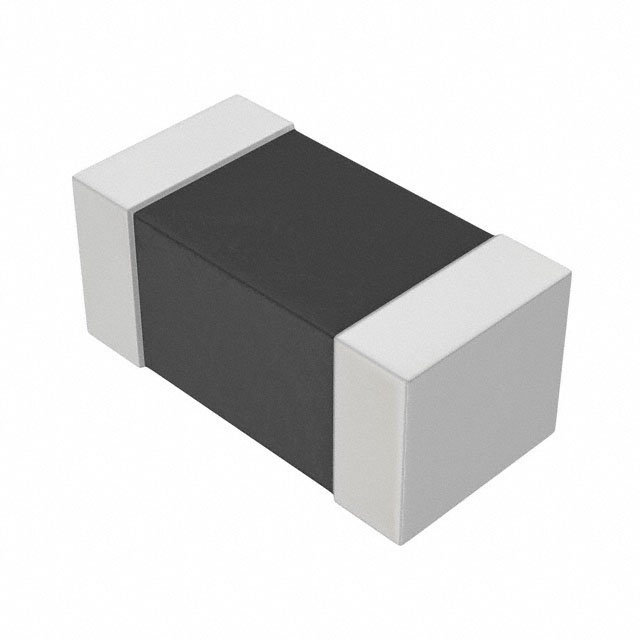

HFI-160808-39NJ
UnknownJaro Components Inc.
FIXED IND 39NH 500MA 650 MOHM
Deep-Dive with AI
Search across all available documentation for this part.
HFI-160808-39NJ
UnknownJaro Components Inc.
FIXED IND 39NH 500MA 650 MOHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HFI-160808-39NJ |
|---|---|
| Current Rating (Amps) | 0.5 A |
| DC Resistance (DCR) | 650 mOhm |
| Frequency - Self Resonant | 1.1 GHz |
| Height - Seated (Max) [Max] [z] | 0.037 " |
| Height - Seated (Max) [Max] [z] | 0.95 mm |
| Inductance | 39 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Q @ Freq | 12, 100 MHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Supplier Device Package | 1608 Metric |
| Supplier Device Package | 0603 |
| Tolerance | 5 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.10 | |||
| 25 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.09 | |||
Description
General part information
HFI-160808-39NJ
39 nH Unshielded Wirewound Inductor 500 mA 650mOhm Max 0603 (1608 Metric)
