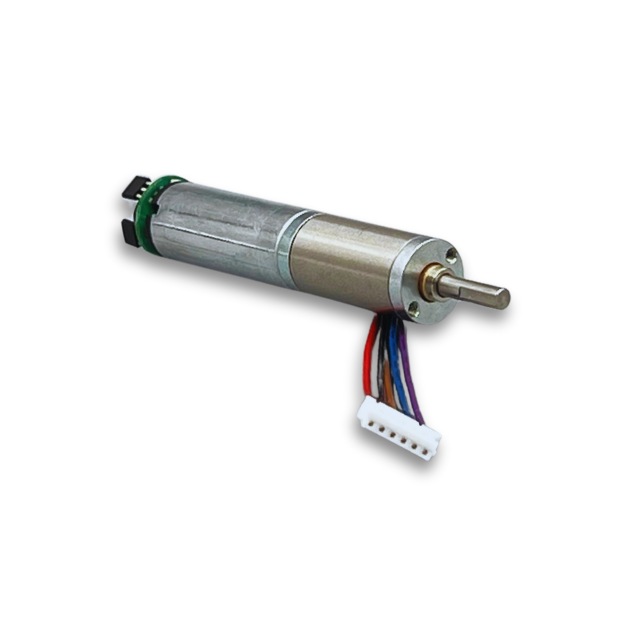

MOT-I-81639-256E
ActiveISL Products International
12MM PLANETARY GEAR MOTOR, 3VDC,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOT-I-81639-256E
ActiveISL Products International
12MM PLANETARY GEAR MOTOR, 3VDC,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-I-81639-256E |
|---|---|
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Encoder Type | Incremental |
| Gear Reduction Ratio | 256 |
| Length - Shaft and Bearing [x] | 2.961 in |
| Length - Shaft and Bearing [x] | 75.2 mm |
| Motor Type | Brushed |
| Mounting Hole Spacing | 9.5 mm |
| Mounting Hole Spacing | 0.374 in |
| RPM | 39 RPM |
| Size / Dimension | Round |
| Size / Dimension | 12 mm |
| Size / Dimension | 0.472 in |
| Torque - Max Momentary (oz-in / mNm) | 196.133 mNm |
| Torque - Max Momentary (oz-in / mNm) | 27.77 oz-in |
| Torque - Rated (oz-in / mNm) | 76.49 mNm |
| Torque - Rated (oz-in / mNm) | 10.83 oz-in |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 166.92 | |
| 100 | $ 86.98 | |||
Description
General part information
MOT-I-81639-256E
Brushed DC Motor Gearmotor 39 RPM 350mW Incremental 3VDC
