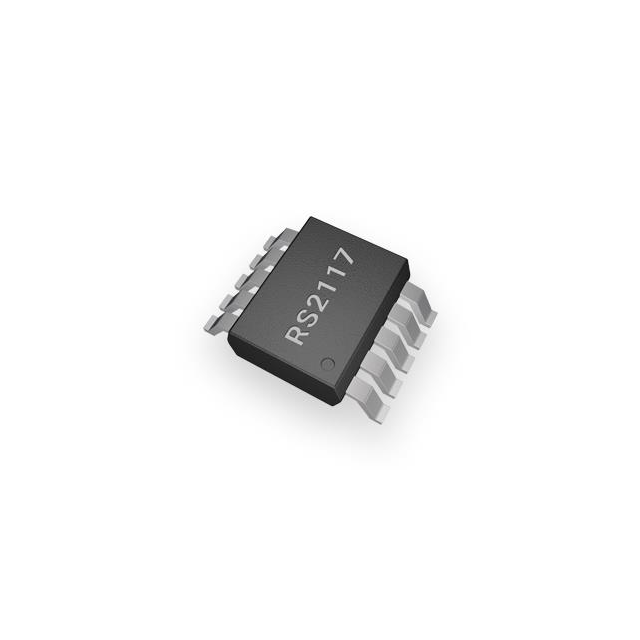

RS2117YN
ActiveRunic Technology
IC SWITCH SPDT X 2 7OHM 10MSOP
Deep-Dive with AI
Search across all available documentation for this part.
RS2117YN
ActiveRunic Technology
IC SWITCH SPDT X 2 7OHM 10MSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RS2117YN |
|---|---|
| -3db Bandwidth | 400 MHz |
| Channel Capacitance (CS(off), CD(off)) [custom] | 10 pF |
| Channel Capacitance (CS(off), CD(off)) [custom] | 10 pF |
| Channel-to-Channel Matching (ΔRon) | 150 mOhm |
| Charge Injection | 15 pC |
| Crosstalk | -52 dB |
| Current - Leakage (IS(off)) (Max) [Max] | 1 µA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) [Max] | 7 Ohms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-MSOP, 10-TFSOP |
| Package / Case [x] | 3 mm |
| Package / Case [x] | 0.118 in |
| Supplier Device Package | 10-MSOP |
| Switch Circuit | SPDT |
| Switch Time (Ton, Toff) (Max) | 15 ns, 10 ns |
| Voltage - Supply, Single (V+) [Max] | 5.5 V |
| Voltage - Supply, Single (V+) [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.76 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.63 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.32 | |||
| Digi-Reel® | 1 | $ 0.76 | ||
| 10 | $ 0.67 | |||
| 25 | $ 0.63 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.32 | |||
| Tape & Reel (TR) | 4000 | $ 0.29 | ||
| 8000 | $ 0.27 | |||
| 12000 | $ 0.26 | |||
| 28000 | $ 0.25 | |||
Description
General part information
RS2117YN
2 Circuit IC Switch 2:1 7Ohm 10-MSOP
Documents
Technical documentation and resources
No documents available
