Technical Specifications
Parameters and characteristics for this part
| Specification | 3000004123 |
|---|---|
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 12.4 mm |
| Length - Shaft and Bearing [x] | 0.488 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 17 mm |
| Mounting Hole Spacing | 0.669 " |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 45 W |
| RPM | 5250 RPM |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 6.373 oz-in |
| Torque - Rated (oz-in / mNm) | 45 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 311.10 | |
| 5 | $ 252.70 | |||
| 20 | $ 194.40 | |||
| 50 | $ 184.70 | |||
Description
General part information
3000004123

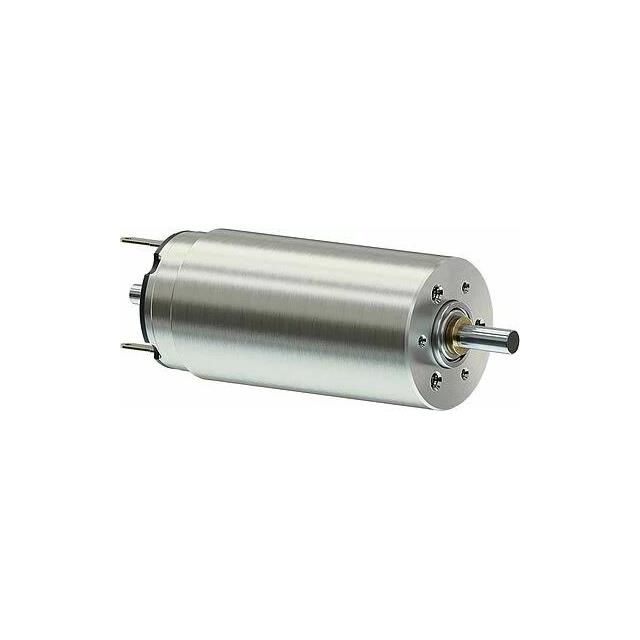

Brushed DC Motor Standard 5250 RPM 45W 12VDC
