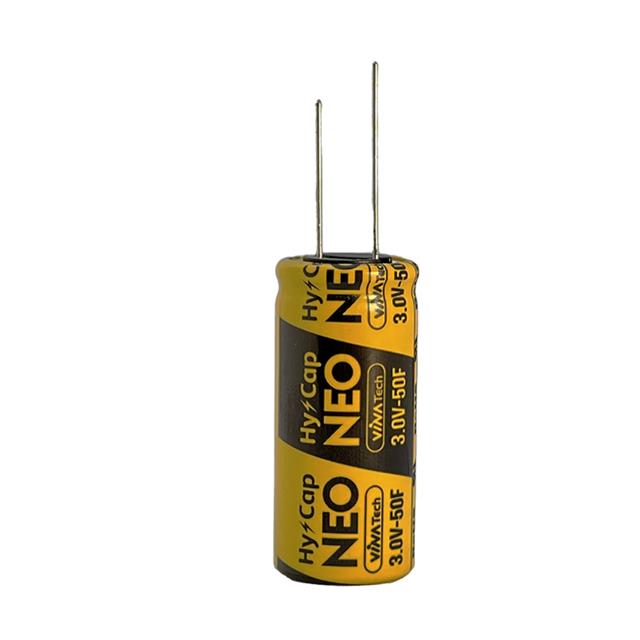

WEC3R0506QG
ActiveVINATech Co LTD
50F 3.0V 18*40 EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WEC3R0506QG
ActiveVINATech Co LTD
50F 3.0V 18*40 EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WEC3R0506QG |
|---|---|
| Capacitance | 50 F |
| ESR (Equivalent Series Resistance) | 13 mOhm |
| Height - Seated (Max) [Max] | 1.634 " |
| Height - Seated (Max) [Max] | 41.5 mm |
| Lead Spacing | 7.5 mm |
| Lead Spacing | 0.295 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.709 " |
| Size / Dimension [diameter] | 18 mm |
| Termination | PC Pins |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | -10 % |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.81 | |
| 10 | $ 3.95 | |||
| 50 | $ 3.19 | |||
| 100 | $ 2.96 | |||
| 500 | $ 2.56 | |||
| 1000 | $ 2.43 | |||
| 2500 | $ 2.30 | |||
Description
General part information
WEC3R0506QG
50 F (EDLC) Supercapacitor 3 V Radial, Can 13mOhm @ 1kHz 1000 Hrs @ 65°C
