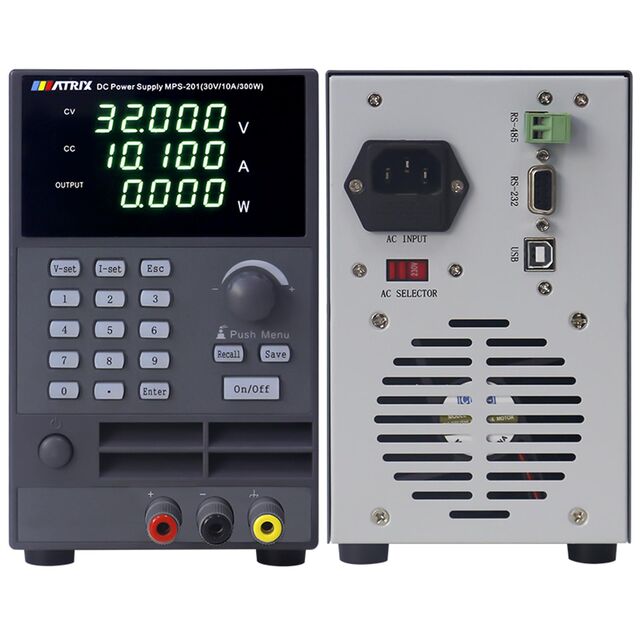

MPS-201
ActiveMATRIX TECHNOLOGY INC.
32V 10A, 1MV 0.1MA, LIST OUTPUT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPS-201
ActiveMATRIX TECHNOLOGY INC.
32V 10A, 1MV 0.1MA, LIST OUTPUT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPS-201 |
|---|---|
| Accuracy - Voltmeter; Ammeter | 1 mV, 0.1 mA |
| Current - Output [Max] | 10 A |
| Current - Output [Min] | 0 A |
| Current Regulation - Line | 5 mA |
| Current Regulation - Line | 0.02 % |
| Current Regulation - Load | 0.02 %, 5 mA |
| Display Type | LED |
| Features | Voltage Compensation, Adjustable Screen Brightness, List Output, Memory |
| Number of Characters | 5 |
| Number of Outputs | 1 |
| Power (Watts) | 320 W |
| Ripple | 8 mV, 5 mA |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [y] | 1.25 in |
| Size / Dimension [y] | 31.75 mm |
| Size / Dimension [z] | 0.59 in |
| Size / Dimension [z] | 14.99 mm |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 32 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply [Max] | 220 VAC |
| Voltage - Supply [Min] | 110 VAC |
| Voltage Regulation - Line | 8 mV, 0.02 % |
| Voltage Regulation - Load | 0.02 %, 8 mV |
| Weight | 4.4 lbs |
| Weight | 2 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 296.00 | |
| 2 | $ 293.00 | |||
| 3 | $ 290.00 | |||
| 4 | $ 287.00 | |||
| 5 | $ 284.00 | |||
| 6 | $ 281.00 | |||
| 10 | $ 278.00 | |||
| 15 | $ 276.00 | |||
| 20 | $ 274.00 | |||
Description
General part information
MPS-201
0 ~ 32V Output Bench (AC to DC) Power Supply LED 0 ~ 10A Output 320W Features Adjustable Screen Brightness, Memory, List Output, Voltage Compensation
