1000570026
UnknownMolex - Temp Flex

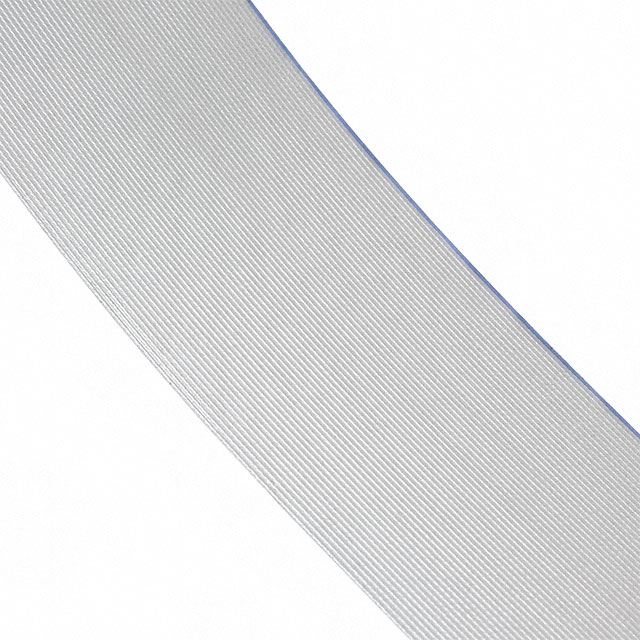

CBL RIBN 60COND 0.025 NATURAL 5'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1000570026
UnknownMolex - Temp Flex
CBL RIBN 60COND 0.025 NATURAL 5'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000570026 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 38 AWG |
| First Conductor Mark | Blue |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Natural |
| Length | 25 ft, 1 ft |
| Length | 7.62 m, 304.8 mm |
| Number of Conductors | 60 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
| Ratings | UL Style 20726 |
| Ribbon Width [y] | 38.1 mm |
| Ribbon Width [y] | 1.5 in |
| Shielding | Unshielded |
| Voltage | 150 V |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 10 | $ 14.95 | |
| 30 | $ 12.58 | |||
| 60 | $ 12.07 | |||
| 150 | $ 11.84 | |||
| 2500 | $ 11.61 | |||
| 5000 | $ 10.57 | |||
Description
General part information
1000570026
Flat Ribbon Cable Natural 60 Conductors 0.025" (0.64mm) Flat Cable 5.0' (1.52m)
