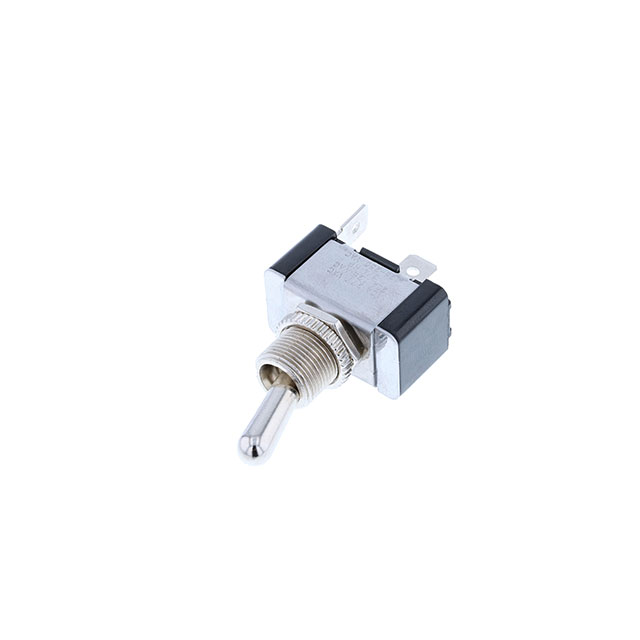

TA2-1A-AC-1-O
ActiveSwitch Components
SWITCH TOGGLE SPST 12A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TA2-1A-AC-1-O
ActiveSwitch Components
SWITCH TOGGLE SPST 12A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TA2-1A-AC-1-O |
|---|---|
| Actuator Length [x] | 16.5 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | SPST |
| Current Rating (Amps) | 12 A |
| Illumination | Non-Illuminated |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TA2-1A-AC-1-O
Toggle Switch SPST Panel Mount
