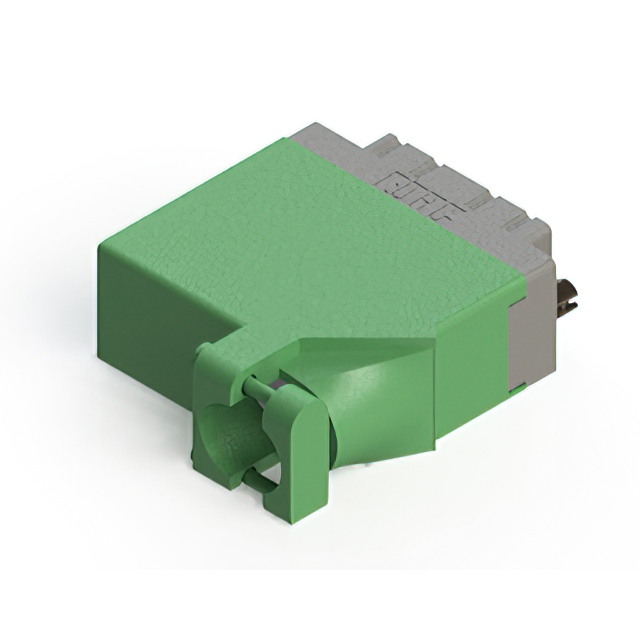

519-036-520-412
ActiveEDAC Inc.
36 CONTACT(S), HERMAPHRODITIC, SOLDER TERMINAL, RECEPTACLE,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
519-036-520-412
ActiveEDAC Inc.
36 CONTACT(S), HERMAPHRODITIC, SOLDER TERMINAL, RECEPTACLE,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 519-036-520-412 |
|---|---|
| Color | Gray |
| Connector Style | Rack and Panel |
| Connector Type | Hermaphroditic Contacts, Receptacle |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Current Rating (Amps) | 8.5 A |
| Features | Jackscrew, Guide Pin |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Columns | 9 |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 52.19 | |
Description
General part information
519-036-520-412
36 Connector Receptacle, Hermaphroditic Contacts Free Hanging (In-Line) Gray Rack and Panel
